Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCS Series
Standard Package	1
Manufacturer	Nichicon
Series	PCS
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	25mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.4A @ 100kHz
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

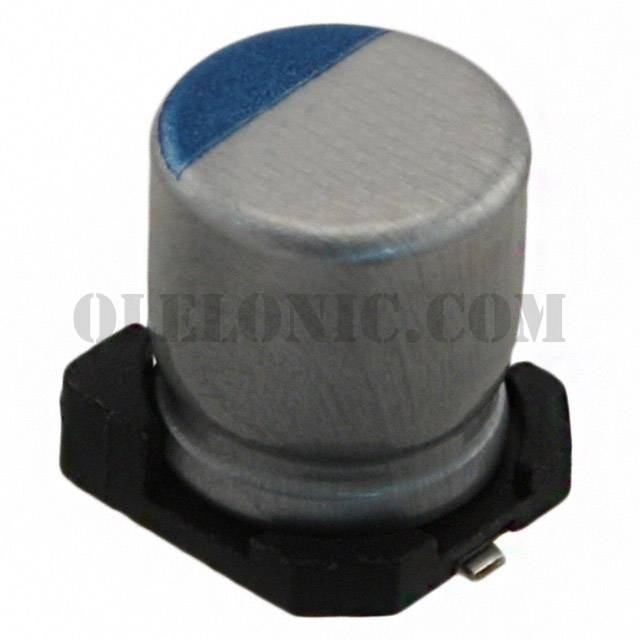

PCS0J101MCL1GS	Nichicon, 100µF 6.3V Aluminum Polymer Capacitor Radial, Can - SMD 25mOhm 5000 Hrs @ 105°C, PCS	View
PCS1C390MCL9GS	Nichicon, 39µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 30mOhm 5000 Hrs @ 105°C, PCS	View
PCS-0R001D1	Riedon, 1 mOhms ±0.5% 40W Through Hole Resistor 4-SIP Current Sense Metal Foil, PCS	View
PCS-0R01D1	Riedon, 10 mOhms ±0.5% 40W Through Hole Resistor 4-SIP Current Sense Metal Foil, PCS	View
PCS1A151MCL9GS	Nichicon, 150µF 10V Aluminum Polymer Capacitor Radial, Can - SMD 30mOhm 5000 Hrs @ 105°C, PCS	View
PCS1C121MCL1GS	Nichicon, 120µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 5000 Hrs @ 105°C, PCS	View
PCS-0R0033D1	Riedon, 3.3 mOhms ±0.5% 40W Through Hole Resistor 4-SIP Current Sense Metal Foil, PCS	View
PCS1C390MCL9GS	Nichicon, 39µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 30mOhm 5000 Hrs @ 105°C, PCS	View
PCS1A271MCL1GS	Nichicon, 270µF 10V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 5000 Hrs @ 105°C, PCS	View
PCS0J121MCL9GS	Nichicon, 120µF 6.3V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 5000 Hrs @ 105°C, PCS	View
PCS0J391MCL1GS	Nichicon, 390µF 6.3V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 5000 Hrs @ 105°C, PCS	View
PCS0J221MCL9GS	Nichicon, 220µF 6.3V Aluminum Polymer Capacitor Radial, Can - SMD 22mOhm 5000 Hrs @ 105°C, PCS	View

PCS0J101MCL1GS

Part NumberPCS0J101MCL1GS
