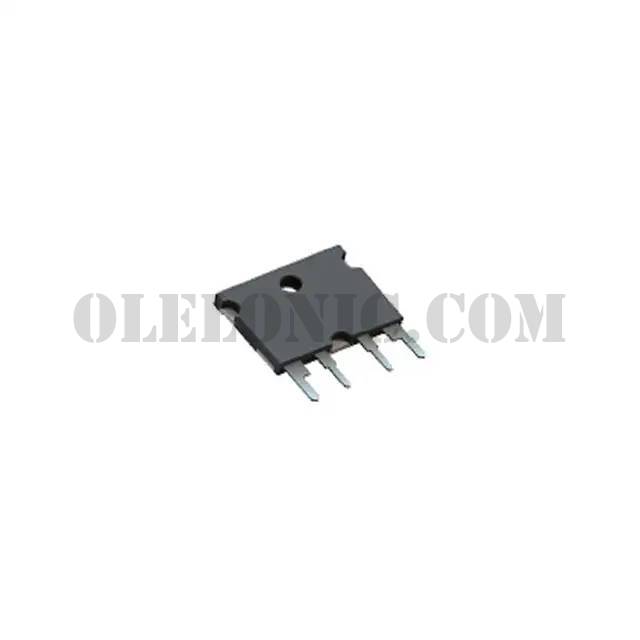

Categories	Resistors / Through Hole Resistors
Datasheet	PCS Series
Standard Package	25
Manufacturer	Riedon
Series	PCS
Packaging	Tube
Part Status	Active
Resistance	5 mOhms
Tolerance	±0.5%
Power (Watts)	40W
Composition	Metal Foil
Features	Current Sense
Temperature Coefficient	±10ppm/°C
Operating Temperature	-40°C ~ 130°C
Package / Case	4-SIP
Supplier Device Package	Radial Lead
Size / Dimension	0.878" L x 0.177" W (22.30mm x 4.50mm)
Height - Seated (Max)	0.687" (17.45mm)
Number of Terminations	4
Failure Rate	-
