PBSS5630PA,115

PBSS5630PA,115

Part NumberPBSS5630PA,115

ManufacturerNexperia USA Inc.

DescriptionTRANS PNP 30V 6A SOT1061

DatasheetPBSS5630PA

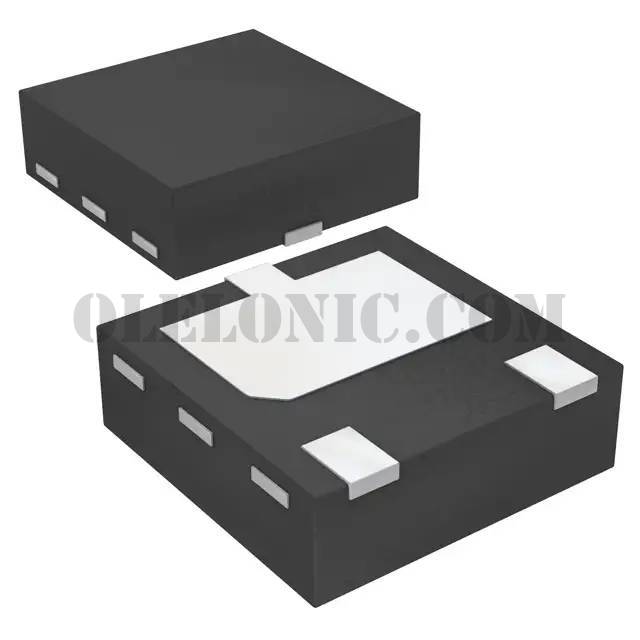

Package / Case3-PowerUDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 30V 6A 80MHz 2.1W Surface Mount 3-HUSON (2x2)

To learn about the specification of PBSS5630PA,115, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PBSS5630PA,115 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PBSS5630PA,115.
We are offering PBSS5630PA,115 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PBSS5630PA,115 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	PBSS5630PA
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	6A
Voltage - Collector Emitter Breakdown (Max)	30V
Vce Saturation (Max) @ Ib, Ic	350mV @ 300mA, 6A
Current - Collector Cutoff (Max)	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	190 @ 2A, 2V
Power - Max	2.1W
Frequency - Transition	80MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-PowerUDFN
Supplier Device Package	3-HUSON (2x2)
Base Part Number	PBSS5630
