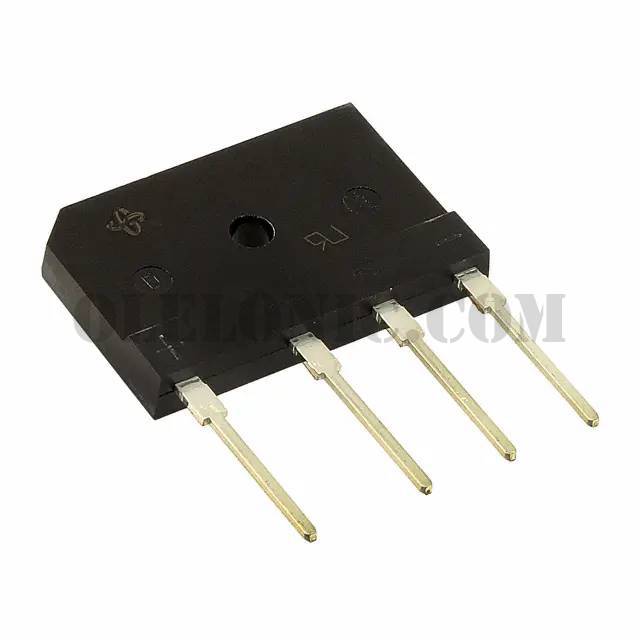

PB3506-E3/45


PB3506-E3/45

Part NumberPB3506-E3/45

Manufacturer

Description

Datasheet

Package / Case4-ESIP, PB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

PB3506-E3/45 - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet
Standard Package1200
ManufacturerVishay Semiconductor Diodes Division
SeriesisoCink+™
PackagingTube
Part StatusActive
Diode TypeSingle Phase
TechnologyStandard
Voltage - Peak Reverse (Max)600V
Current - Average Rectified (Io)35A
Voltage - Forward (Vf) (Max) @ If1.1V @ 17.5A
Current - Reverse Leakage @ Vr10µA @ 600V
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case4-ESIP, PB
Supplier Device PackageisoCINK+™ PB
