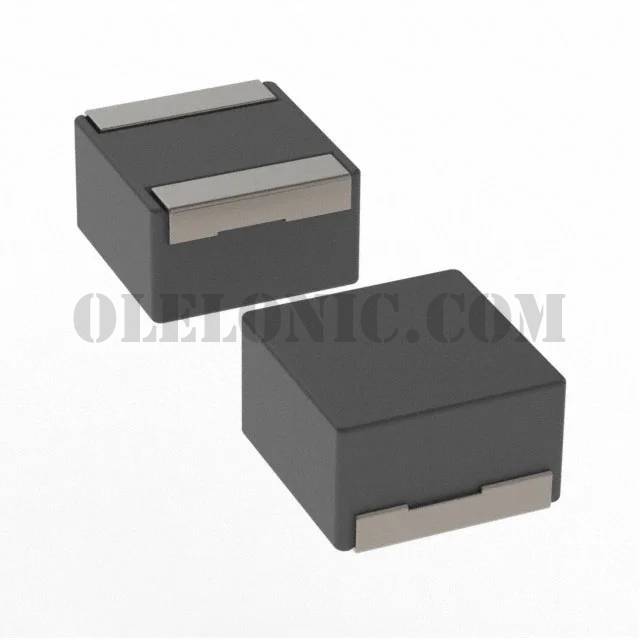

PA4349.683ANLT

Part NumberPA4349.683ANLT

ManufacturerPulse Electronics Power

DescriptionINDUCTOR 68 UH SMT 24 X 22.3

DatasheetPA4349.zzzANLT Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description68µH Shielded Molded Inductor 14A 29.5mOhm Max Nonstandard

To learn about the specification of PA4349.683ANLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA4349.683ANLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA4349.683ANLT.
We are offering PA4349.683ANLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PA4349.683ANLT - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PA4349.zzzANLT Series

Standard Package

Manufacturer

Pulse Electronics Power

Series

PA4349.XXXANLT

Part Status

Active

Type

Molded

Material - Core

Inductance

68µH

Tolerance

±20%

Current Rating (Amps)

14A

Current - Saturation

12A

Shielding

Shielded

DC Resistance (DCR)

29.5mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

AEC-Q200

Operating Temperature

-55°C ~ 155°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.925" L x 0.866" W (23.50mm x 22.00mm)

Height - Seated (Max)

0.512" (13.00mm)
