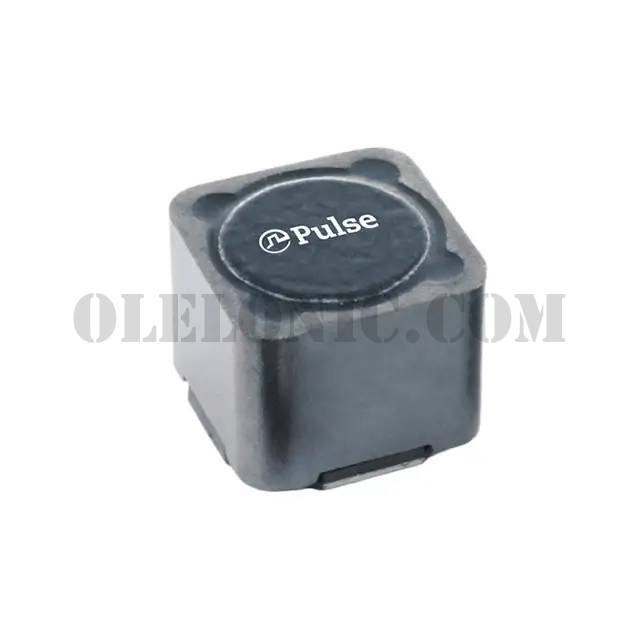

PA4320.103NLT

Part NumberPA4320.103NLT

ManufacturerPulse Electronics Power

DescriptionFIXED IND 10UH 7.6A 16 MOHM SMD

DatasheetPA4320.zzzNLT Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Shielded Wirewound Inductor 7.6A 16mOhm Max Nonstandard

To learn about the specification of PA4320.103NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA4320.103NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA4320.103NLT.
We are offering PA4320.103NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PA4320.103NLT - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PA4320.zzzNLT Series

Standard Package

300

Manufacturer

Pulse Electronics Power

Series

PA4320

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

10µH

Tolerance

±20%

Current Rating (Amps)

7.6A

Current - Saturation

9.6A

Shielding

Shielded

DC Resistance (DCR)

16mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.472" L x 0.472" W (12.00mm x 12.00mm)

Height - Seated (Max)

0.402" (10.20mm)
