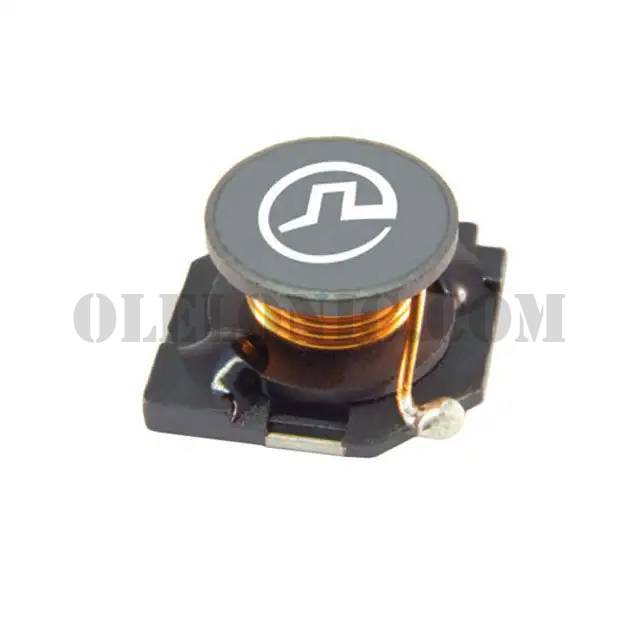

PA4309.683NLT

Part NumberPA4309.683NLT

ManufacturerPulse Electronics Power

DescriptionFIXED IND 68UH 4.2A 298 MOHM SMD

DatasheetPA43(09,10).zzzNLT Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description68µH Unshielded Wirewound Inductor 4.2A 298mOhm Max Nonstandard

To learn about the specification of PA4309.683NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA4309.683NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA4309.683NLT.
We are offering PA4309.683NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PA4309.683NLT - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PA43(09,10).zzzNLT Series

Standard Package

Manufacturer

Pulse Electronics Power

Series

PA4309.XXXNL

Packaging

Cut Tape (CT)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

68µH

Tolerance

±20%

Current Rating (Amps)

4.2A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

298mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.504" L x 0.504" W (12.80mm x 12.80mm)

Height - Seated (Max)

0.276" (7.00mm)
