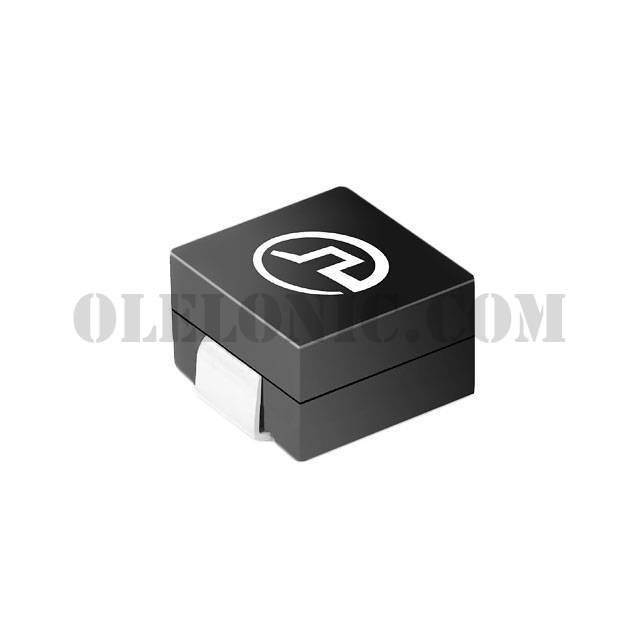

PA3790.221HL

Part NumberPA3790.221HL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 220NH 57A 0.29 MOHM

DatasheetPA3790.yyyHLT Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description220nH Shielded Inductor 55A 0.29mOhm Nonstandard

To learn about the specification of PA3790.221HL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA3790.221HL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA3790.221HL.
We are offering PA3790.221HL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PA3790.221HL - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PA3790.yyyHLT Series

Standard Package

120

Manufacturer

Pulse Electronics Power

Series

PA3790.XXXHL

Packaging

Tray

Part Status

Active

Type

Material - Core

Inductance

220nH

Tolerance

±15%

Current Rating (Amps)

55A

Current - Saturation

63A

Shielding

Shielded

DC Resistance (DCR)

0.29mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.492" L x 0.315" W (12.50mm x 8.00mm)

Height - Seated (Max)

0.315" (8.00mm)
