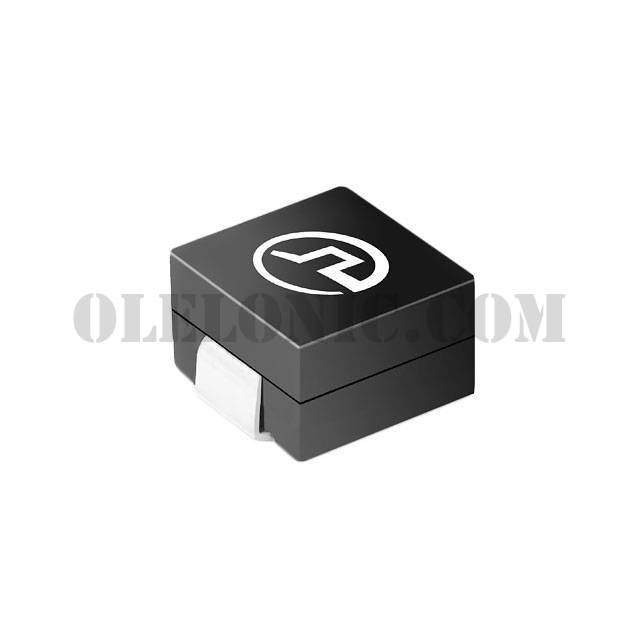

PA3784.121HL

Part NumberPA3784.121HL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 120NH 70A 0.18 MOHM

DatasheetPA3784.yyyHLT Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description120nH Unshielded Inductor 70A 0.18mOhm Nonstandard

To learn about the specification of PA3784.121HL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA3784.121HL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA3784.121HL.
We are offering PA3784.121HL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PA3784.121HL - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PA3784.yyyHLT Series

Standard Package

100

Manufacturer

Pulse Electronics Power

Series

PA3784.XXXHL

Packaging

Tray

Part Status

Active

Type

Material - Core

Inductance

120nH

Tolerance

±10%

Current Rating (Amps)

70A

Current - Saturation

94A

Shielding

Unshielded

DC Resistance (DCR)

0.18mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.394" L x 0.315" W (10.00mm x 8.00mm)

Height - Seated (Max)

0.315" (8.00mm)
