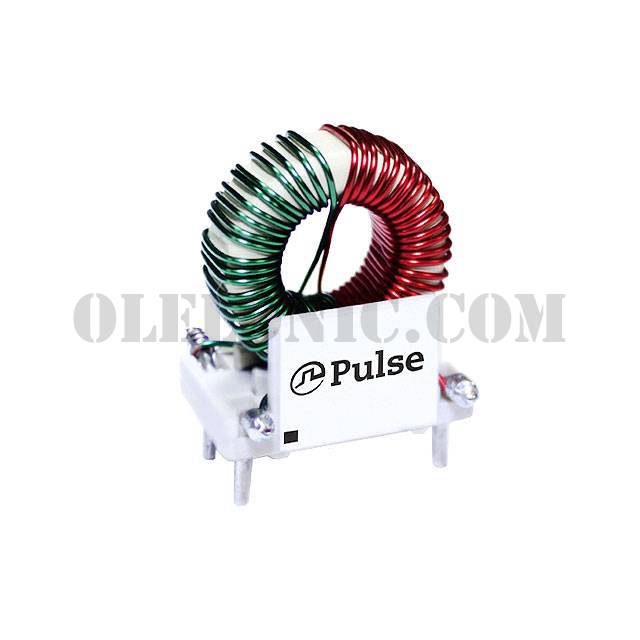

PA3747.205NL

Part NumberPA3747.205NL

ManufacturerPulse Electronics Power

DescriptionCOMMON MODE CHOKE 4A 2LN TH

DatasheetPA3747.yyyNL Series

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Through Hole 4A DCR 25.5mOhm

To learn about the specification of PA3747.205NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA3747.205NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA3747.205NL.
We are offering PA3747.205NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PA3747.205NL - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

PA3747.yyyNL Series

Standard Package

Manufacturer

Pulse Electronics Power

Series

PA3747

Packaging

Tray

Part Status

Active

Filter Type

Number of Lines

Current Rating (Max)

DC Resistance (DCR) (Max)

25.5mOhm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-40°C ~ 125°C

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

0.760" L x 0.717" W (19.30mm x 18.20mm)

Height (Max)

0.902" (22.90mm)

Package / Case

Vertical, 4 PC Pin
