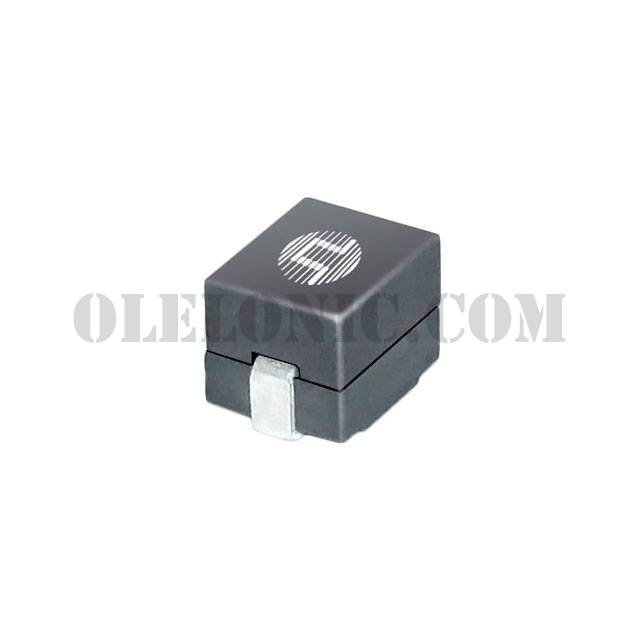

PA3136.211HL

Part NumberPA3136.211HL

ManufacturerPulse Electronics Power

DescriptionFIXED INDUCT 210NH 50A 0.23 MOHM

DatasheetPA3136.yyyHL Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description210nH Unshielded Inductor 50A 0.23mOhm Nonstandard

To learn about the specification of PA3136.211HL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA3136.211HL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA3136.211HL.
We are offering PA3136.211HL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PA3136.211HL - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PA3136.yyyHL Series

Standard Package

165

Manufacturer

Pulse Electronics Power

Series

PA3136.XXXHL

Packaging

Tray

Part Status

Active

Type

Material - Core

Inductance

210nH

Tolerance

±15%

Current Rating (Amps)

50A

Current - Saturation

25A

Shielding

Unshielded

DC Resistance (DCR)

0.23mOhm

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.543" L x 0.315" W (13.80mm x 8.00mm)

Height - Seated (Max)

0.157" (4.00mm)
