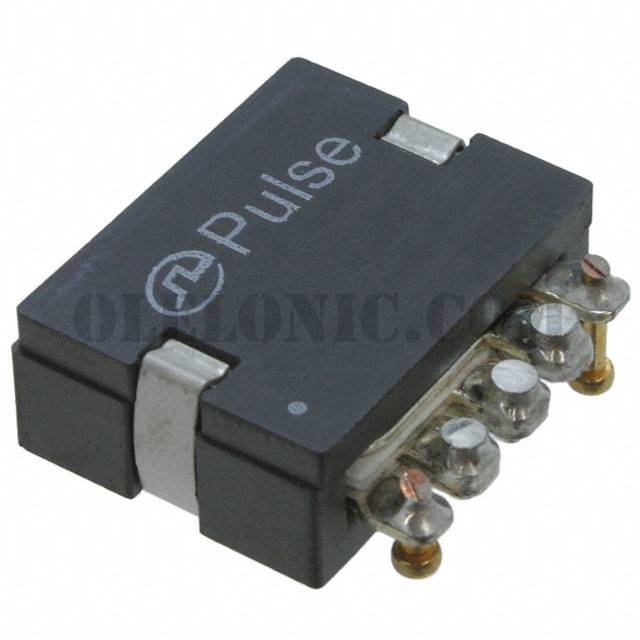

PA1292.152NLT

Part NumberPA1292.152NLT

ManufacturerPulse Electronics Power

DescriptionFIXED IND 1.5UH 21A 0.98 MOHM

DatasheetPA1x9xNL Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.5µH Shielded Planar Inductor 21A 0.98mOhm Max Nonstandard

To learn about the specification of PA1292.152NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA1292.152NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA1292.152NLT.
We are offering PA1292.152NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PA1292.152NLT - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PA1x9xNL Series

Standard Package

250

Manufacturer

Pulse Electronics Power

Series

PA1292NL

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Planar

Material - Core

Inductance

1.5µH

Tolerance

±15%

Current Rating (Amps)

21A

Current - Saturation

24A

Shielding

Shielded

DC Resistance (DCR)

0.98mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.780" L x 0.770" W (19.81mm x 19.56mm)

Height - Seated (Max)

0.290" (7.37mm)
