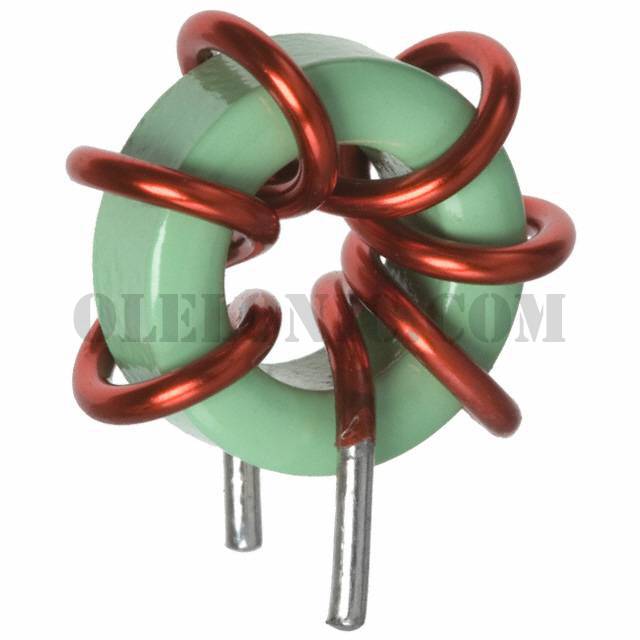

PA0235L

Part NumberPA0235L

ManufacturerPulse Electronics Power

DescriptionFIXED IND 670NH 22.5A 2.6 MOHM

DatasheetTHT Pwr Inductors - Bare Coil Series

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description860nH Unshielded Toroidal Inductor 22.5A 2.6mOhm Max Radial, Vertical (Open)

To learn about the specification of PA0235L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA0235L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA0235L.
We are offering PA0235L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PA0235L - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

THT Pwr Inductors - Bare Coil Series

Standard Package

Manufacturer

Pulse Electronics Power

Series

Bare Coil

Packaging

Tray

Part Status

Obsolete

Type

Toroidal

Material - Core

Inductance

860nH

Tolerance

Current Rating (Amps)

22.5A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

2.6mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Features

Mounting Type

Through Hole

Package / Case

Radial, Vertical (Open)

Supplier Device Package

Size / Dimension

Height - Seated (Max)
