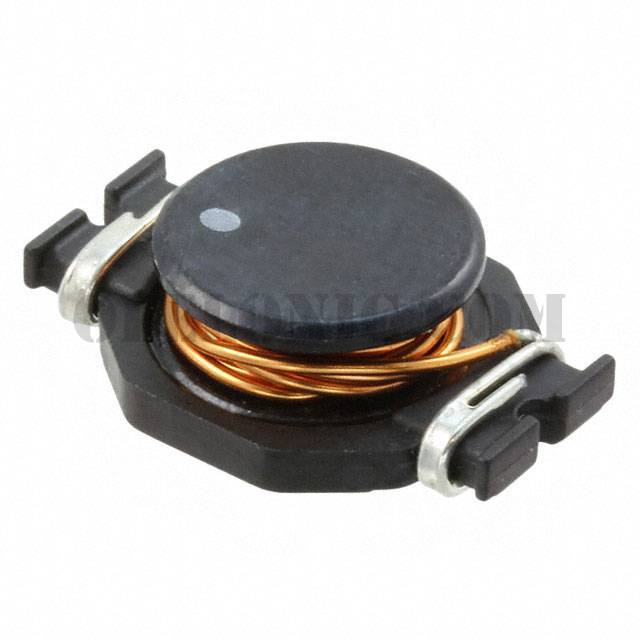

P1252.781NLT

Part NumberP1252.781NLT

ManufacturerPulse Electronics Power

DescriptionFIXED IND 780NH 15A 2.6 MOHM SMD

DatasheetP1252NL Series SMT Power Inductors

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description780nH Unshielded Wirewound Inductor 15A 2.6mOhm Max Nonstandard

To learn about the specification of P1252.781NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add P1252.781NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of P1252.781NLT.
We are offering P1252.781NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

P1252.781NLT - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

P1252NL Series SMT Power Inductors

Standard Package

300

Manufacturer

Pulse Electronics Power

Series

P1252NL

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

780nH

Tolerance

±20%

Current Rating (Amps)

15A

Current - Saturation

30A

Shielding

Unshielded

DC Resistance (DCR)

2.6mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.879" L x 0.596" W (22.33mm x 15.14mm)

Height - Seated (Max)

0.295" (7.49mm)
