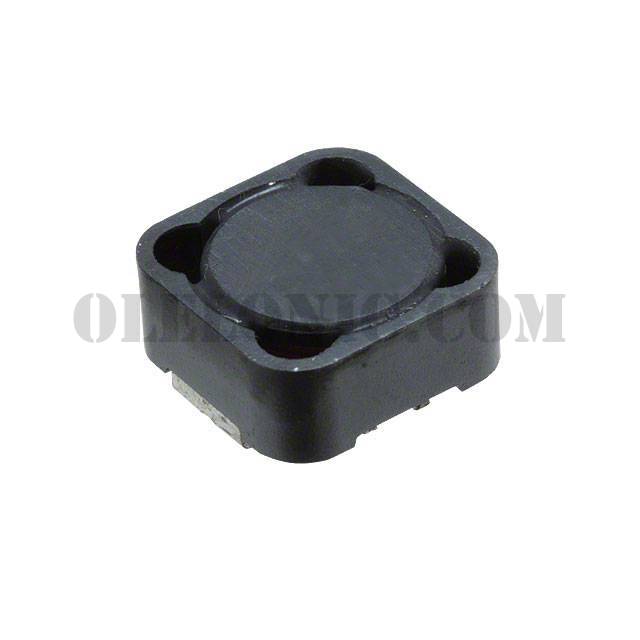

P1170.153NLT


P1170.153NLT

Part NumberP1170.153NLT

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

P1170.153NLT - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package500
ManufacturerPulse Electronics Power
SeriesP1170NL
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - Core-
Inductance15µH
Tolerance±20%
Current Rating (Amps)4A
Current - Saturation4A
ShieldingShielded
DC Resistance (DCR)30mOhm Max
Q @ Freq-
Frequency - Self Resonant16MHz
Ratings-
Operating Temperature-40°C ~ 130°C
Inductance Frequency - Test100kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)0.236" (6.00mm)
