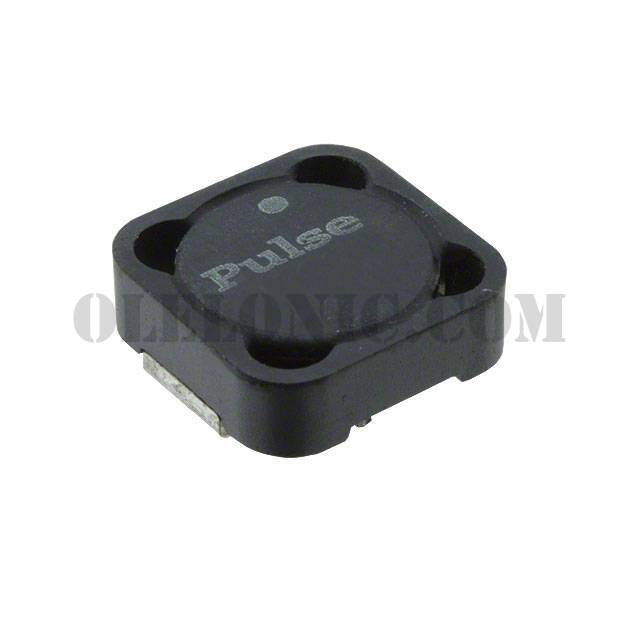

P1168.104NLT


P1168.104NLT

Part NumberP1168.104NLT

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

P1168.104NLT - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package500
ManufacturerPulse Electronics Power
SeriesP1168NL
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - Core-
Inductance100µH
Tolerance±20%
Current Rating (Amps)1.2A
Current - Saturation1.2A
ShieldingShielded
DC Resistance (DCR)270mOhm Max
Q @ Freq-
Frequency - Self Resonant6MHz
Ratings-
Operating Temperature-40°C ~ 130°C
Inductance Frequency - Test100kHz
Features-
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)0.177" (4.50mm)
