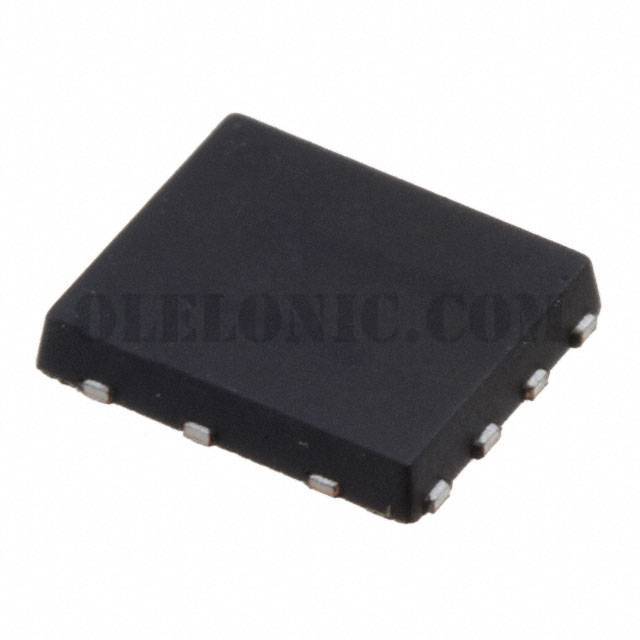

NTMFD4C20NT1G

Part NumberNTMFD4C20NT1G

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 30V SO8FL

DatasheetNTMFD4C20N

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 9.1A, 13.7A 1.09W, 1.15W Surface Mount 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical)

To learn about the specification of NTMFD4C20NT1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTMFD4C20NT1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTMFD4C20NT1G.
We are offering NTMFD4C20NT1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTMFD4C20NT1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	NTMFD4C20N
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	9.1A, 13.7A
Rds On (Max) @ Id, Vgs	7.3mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	970pF @ 15V
Power - Max	1.09W, 1.15W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical)
