NTLLD4901NFTWG

NTLLD4901NFTWG

Part NumberNTLLD4901NFTWG

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 30V 5.5A/6.3A WDFN8

DatasheetNTLLD4901NF

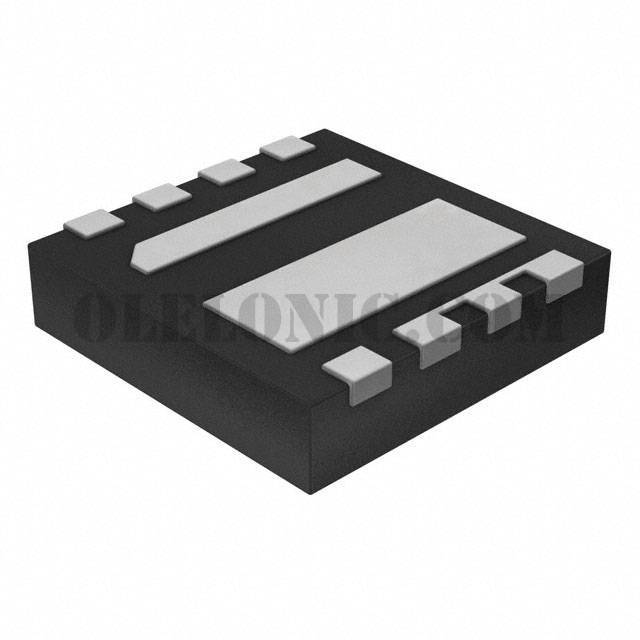

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 5.5A, 6.3A 800mW, 810mW Surface Mount 8-WDFN (3x3)

To learn about the specification of NTLLD4901NFTWG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLLD4901NFTWG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLLD4901NFTWG.
We are offering NTLLD4901NFTWG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLLD4901NFTWG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	NTLLD4901NF
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5.5A, 6.3A
Rds On (Max) @ Id, Vgs	17.4mOhm @ 9A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	605pF @ 15V
Power - Max	800mW, 810mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-WDFN (3x3)
