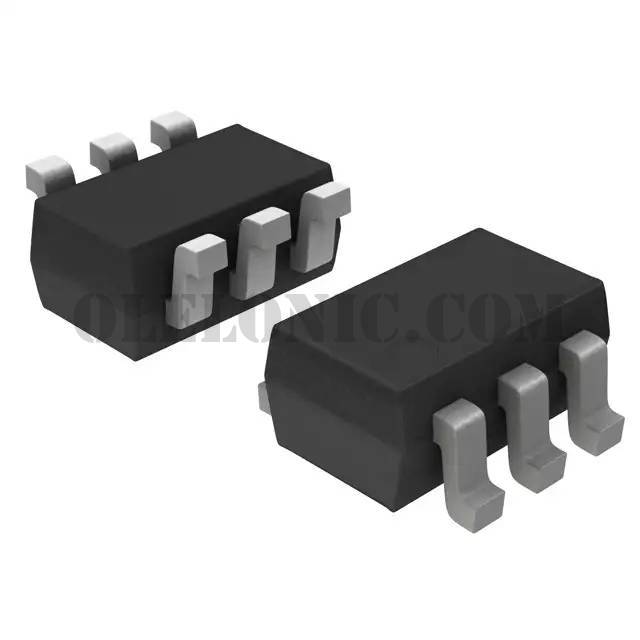

NTJS4405NT1G

NTJS4405NT1G

Part NumberNTJS4405NT1G

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 25V 1A SOT-363

DatasheetNTJS4405N

Package / Case6-TSSOP, SC-88, SOT-363

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 25V 1A (Ta) 630mW (Ta) Surface Mount SC-88/SC70-6/SOT-363

To learn about the specification of NTJS4405NT1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTJS4405NT1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTJS4405NT1G.
We are offering NTJS4405NT1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTJS4405NT1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTJS4405N
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 4.5V
Rds On (Max) @ Id, Vgs	350mOhm @ 600mA, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.5nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	60pF @ 10V
FET Feature	-
Power Dissipation (Max)	630mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-88/SC70-6/SOT-363
Package / Case	6-TSSOP, SC-88, SOT-363
