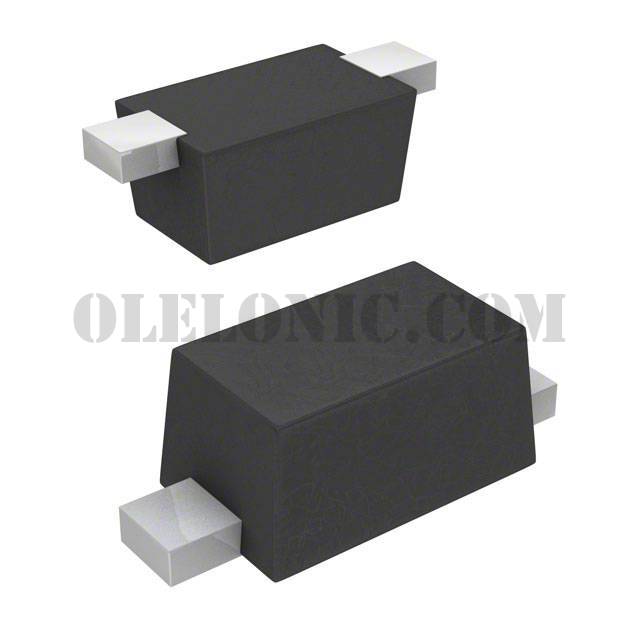

NSVR0230M2T5G

NSVR0230M2T5G

Part NumberNSVR0230M2T5G

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 30V 200MA SOD723

DatasheetNSR/NSVR0230M2T5G

Package / CaseSOD-723

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 200mA (DC) Surface Mount SOD-723

To learn about the specification of NSVR0230M2T5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSVR0230M2T5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSVR0230M2T5G.
We are offering NSVR0230M2T5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSVR0230M2T5G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	NSR/NSVR0230M2T5G
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	500mV @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	100µA @ 30V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	SOD-723
Supplier Device Package	SOD-723
Operating Temperature - Junction	-55°C ~ 125°C
Base Part Number	NSR0230
