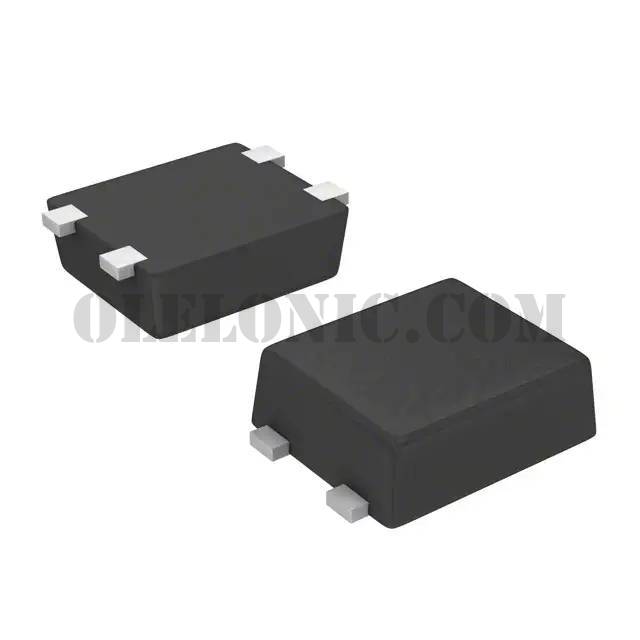

NSVBC856BM3T5G


NSVBC856BM3T5G

Part NumberNSVBC856BM3T5G

Manufacturer

Description

Datasheet

Package / CaseSOT-723

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NSVBC856BM3T5G - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet
Standard Package1
ManufacturerON Semiconductor
Series-
PackagingCut Tape (CT)
Part StatusActive
Transistor TypePNP
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)65V
Vce Saturation (Max) @ Ib, Ic650mV @ 5mA, 100mA
Current - Collector Cutoff (Max)15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce220 @ 2mA, 5V
Power - Max265mW
Frequency - Transition100MHz
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-723
Supplier Device PackageSOT-723
