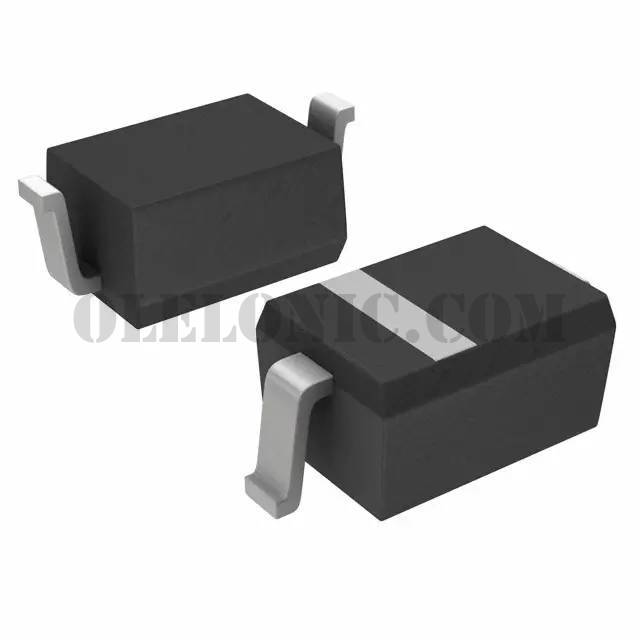

NSVBAS21HT3G

NSVBAS21HT3G

Part NumberNSVBAS21HT3G

ManufacturerON Semiconductor

DescriptionDIODE GEN PURP 250V 200MA SOD323

DatasheetBAS21HTxG, NSVBAS21HTxG

Package / CaseSC-76, SOD-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 250V 200mA (DC) Surface Mount SOD-323

To learn about the specification of NSVBAS21HT3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSVBAS21HT3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSVBAS21HT3G.
We are offering NSVBAS21HT3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSVBAS21HT3G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAS21HTxG, NSVBAS21HTxG
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	250V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 200V
Capacitance @ Vr, F	5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
Operating Temperature - Junction	-55°C ~ 150°C
Base Part Number	BAS21
