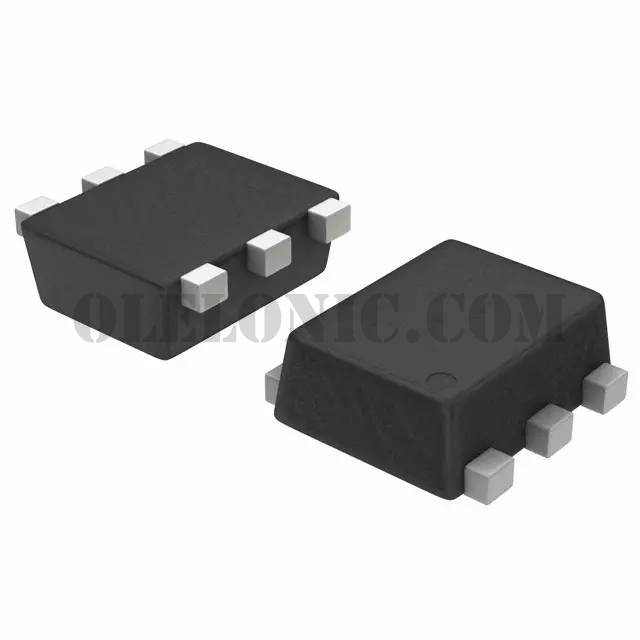

NST3904DP6T5G

NST3904DP6T5G

Part NumberNST3904DP6T5G

ManufacturerON Semiconductor

DescriptionTRANS 2NPN 40V 0.2A SOT963

DatasheetNST3904DP6T5G

Package / CaseSOT-963

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 2 NPN (Dual) 40V 200mA 200MHz 350mW Surface Mount SOT-963

To learn about the specification of NST3904DP6T5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NST3904DP6T5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NST3904DP6T5G.
We are offering NST3904DP6T5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NST3904DP6T5G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	NST3904DP6T5G
Standard Package	8000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	200mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	300mV @ 5mA, 50mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Power - Max	350mW
Frequency - Transition	200MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-963
Supplier Device Package	SOT-963
Base Part Number	NST3904D
