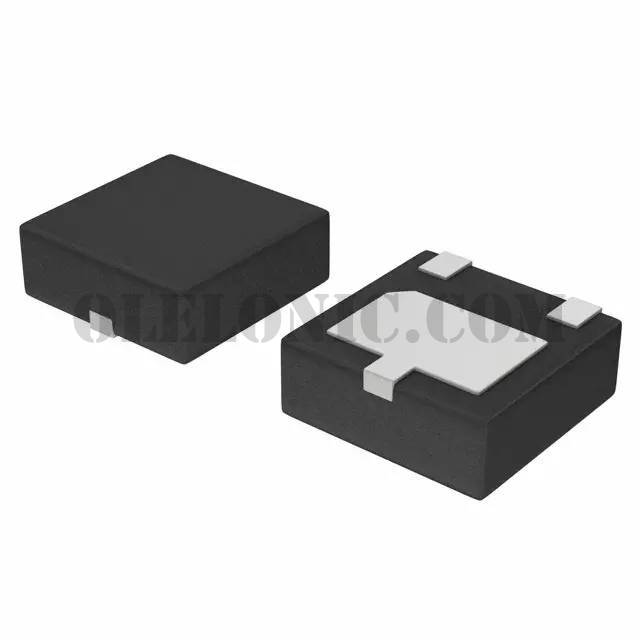

NSS12100UW3TCG

NSS12100UW3TCG

Part NumberNSS12100UW3TCG

ManufacturerON Semiconductor

DescriptionTRANS PNP 12V 1A WDFN3

DatasheetNSS12100UW3TCG

Package / Case3-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 12V 1A 200MHz 740mW Surface Mount 3-WDFN (2x2)

To learn about the specification of NSS12100UW3TCG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSS12100UW3TCG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSS12100UW3TCG.
We are offering NSS12100UW3TCG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSS12100UW3TCG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	NSS12100UW3TCG
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	12V
Vce Saturation (Max) @ Ib, Ic	440mV @ 100mA, 1A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 500mA, 2V
Power - Max	740mW
Frequency - Transition	200MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-WDFN Exposed Pad
Supplier Device Package	3-WDFN (2x2)
Base Part Number	NSS12100
