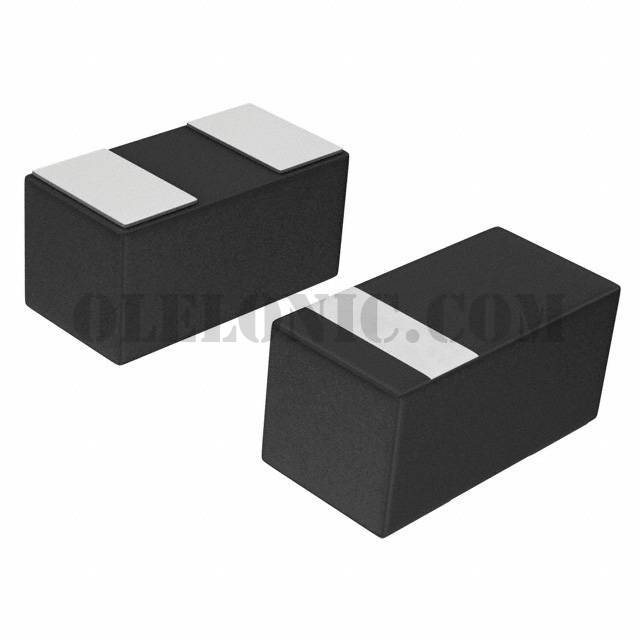

NSR15405NXT5G

NSR15405NXT5G

Part NumberNSR15405NXT5G

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 40V 1.5A 2DSN

DatasheetNSR15405NXT5G

Package / Case0502 (1406 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 1.5A (DC) Surface Mount 2-DSN (1.4x0.6)

To learn about the specification of NSR15405NXT5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSR15405NXT5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSR15405NXT5G.
We are offering NSR15405NXT5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSR15405NXT5G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	NSR15405NXT5G
Standard Package	5000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	1.5A (DC)
Voltage - Forward (Vf) (Max) @ If	590mV @ 1.5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	33ns
Current - Reverse Leakage @ Vr	75µA @ 40V
Capacitance @ Vr, F	85pF @ 2V, 1MHz
Mounting Type	Surface Mount
Package / Case	0502 (1406 Metric)
Supplier Device Package	2-DSN (1.4x0.6)
Operating Temperature - Junction	150°C (Max)
