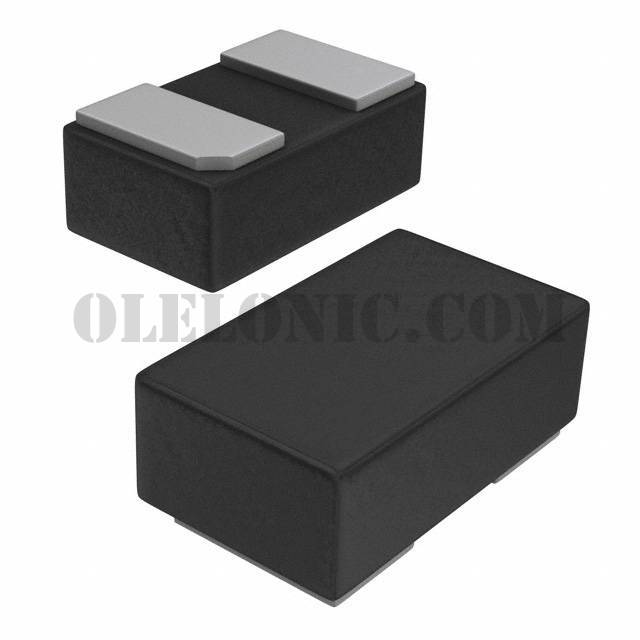

NSR05301MX4T5G

NSR05301MX4T5G

Part NumberNSR05301MX4T5G

ManufacturerON Semiconductor

Description01005_TRENCH_SCHOTTKY_30V

DatasheetNSR05301

Package / Case0402 (1005 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 500mA (DC) Surface Mount 2-X4DFN (0.45x0.24)

To learn about the specification of NSR05301MX4T5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSR05301MX4T5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSR05301MX4T5G.
We are offering NSR05301MX4T5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSR05301MX4T5G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	NSR05301
Standard Package	10000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	500mA (DC)
Voltage - Forward (Vf) (Max) @ If	800mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	11ns
Current - Reverse Leakage @ Vr	100µA @ 30V
Capacitance @ Vr, F	19pF @ 5V, 1MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	2-X4DFN (0.45x0.24)
Operating Temperature - Junction	-55°C ~ 125°C
