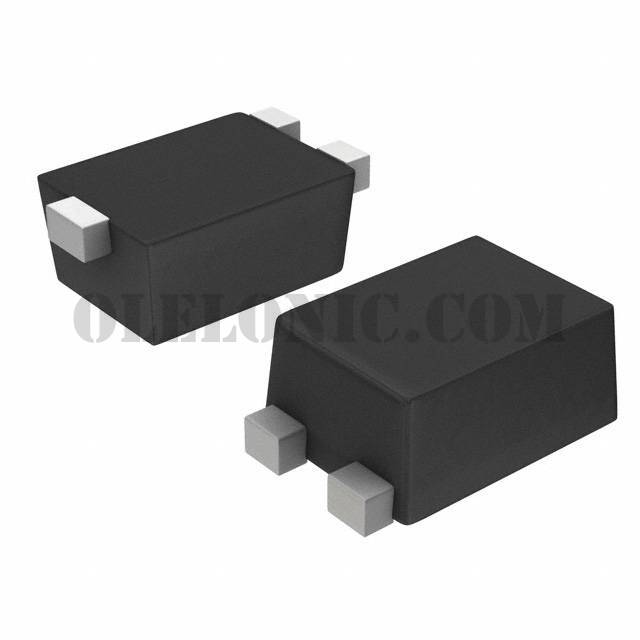

NSBC124EF3T5G

Part NumberNSBC124EF3T5G

ManufacturerON Semiconductor

DescriptionTRANS PREBIAS NPN 254MW SOT1123

DatasheetMUN(2,5)212, MMUN2212L, DTC1234Exx, NSBC124EF3

Package / CaseSOT-1123

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionPre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 254mW Surface Mount SOT-1123

To learn about the specification of NSBC124EF3T5G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NSBC124EF3T5G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NSBC124EF3T5G.
We are offering NSBC124EF3T5G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NSBC124EF3T5G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single, Pre-Biased
Datasheet	MUN(2,5)212, MMUN2212L, DTC1234Exx, NSBC124EF3
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN - Pre-Biased
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1)	22 kOhms
Resistor - Emitter Base (R2)	22 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic	250mV @ 300µA, 10mA
Current - Collector Cutoff (Max)	500nA
Power - Max	254mW
Mounting Type	Surface Mount
Package / Case	SOT-1123
Supplier Device Package	SOT-1123
Base Part Number	NSBC1*
