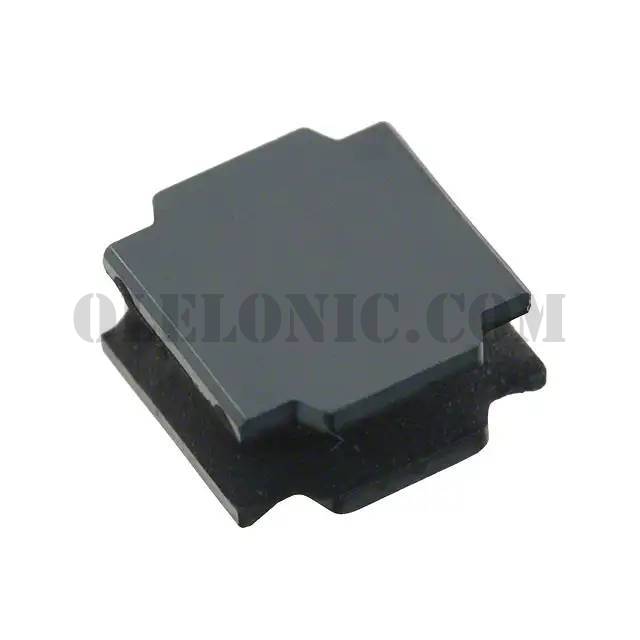

NRS8040T3R6NJGJ


NRS8040T3R6NJGJ

Part NumberNRS8040T3R6NJGJ

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NRS8040T3R6NJGJ - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerTaiyo Yuden
SeriesNR, S Type
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance3.6µH
Tolerance±30%
Current Rating (Amps)4.9A
Current - Saturation6.4A
ShieldingShielded
DC Resistance (DCR)19.5mOhm Max
Q @ Freq-
Frequency - Self Resonant34MHz
Ratings-
Operating Temperature-25°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)0.157" (4.00mm)
