Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	1
Manufacturer	Taiyo Yuden
Series	NR, S Type
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	3.3µH
Tolerance	±20%
Current Rating (Amps)	1.02A
Current - Saturation	1A
Shielding	Shielded
DC Resistance (DCR)	190mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	AEC-Q200
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)

NRS5014T2R2NMGG	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2A 78mOhm Max Nonstandard, NR, S Type	View
NRS5030T4R7MMGJ	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 2.6A 35mOhm Nonstandard, NR, S Type	View
NRS5012T4R7MMGF	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.4A 216mOhm Max 2005 (5012 Metric), NR, S Type	View
NRS5024T330MMGJV	Taiyo Yuden, 33µH Shielded Wirewound Inductor 630mA 444mOhm Max Nonstandard, NR, S Type	View
NRS5030T470MMGJV	Taiyo Yuden, 47µH Shielded Wirewound Inductor 700mA 422.5mOhm Max Nonstandard, NR, S Type	View
NRS5040T220MMGKV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 1.4A 163.8mOhm Max Nonstandard, NR, S Type	View
NRH3012T220MNV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 500mA 756mOhm Max Nonstandard, NR, H Type	View
NRS5020T4R7MMGJV	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 2A 72mOhm Max Nonstandard, NR, S Type	View
NR3015T2R2M	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 1.5A 72mOhm Max Nonstandard, NR	View
NRV3012T2R2MV	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 1.1A 144mOhm Max Nonstandard, NR, V Type	View
NRS8040T100MJGJ	Taiyo Yuden, 10µH Shielded Wirewound Inductor 3.1A 44.2mOhm Max Nonstandard, NR, S Type	View
NRS4018T150MDGJV	Taiyo Yuden, 15µH Shielded Wirewound Inductor 850mA 252mOhm Max Nonstandard, NR, S Type	View

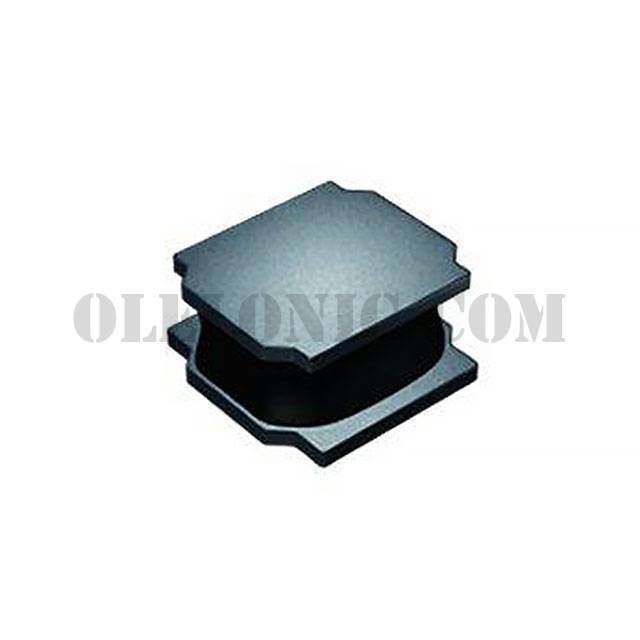

NRS2012T3R3MGJV

Part NumberNRS2012T3R3MGJV
