Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	1500
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	47µH
Tolerance	±20%
Current Rating (Amps)	1.1A
Current - Saturation	1.3A
Shielding	Shielded
DC Resistance (DCR)	286mOhm Max
Q @ Freq	-
Frequency - Self Resonant	5MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)	0.177" (4.50mm)

NRS6012T101MMGJV	Taiyo Yuden, 100µH Shielded Wirewound Inductor 320mA 2.004Ohm Max Nonstandard, NR, S Type	View
NRH2412T3R3MNGH	Taiyo Yuden, 3.3µH Shielded Wirewound Inductor 750mA 225mOhm Nonstandard, NR, H Type	View
NRS6012T100MMGJ	Taiyo Yuden, 10µH Shielded Wirewound Inductor 1.2A 240mOhm Max Nonstandard, NR, S Type	View
NRS8040T2R0NJGJ	Taiyo Yuden, 2µH Shielded Wirewound Inductor 6.3A 11.7mOhm Max Nonstandard, NR, S Type	View
NRS6012T4R7MMGG	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.55A 150mOhm Max Nonstandard, NR, S Type	View
NRS5014T4R7NMGG	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 1.4A 120mOhm Max Nonstandard, NR, S Type	View
NRS6028T680MMGJ	Taiyo Yuden, 68µH Shielded Wirewound Inductor 770mA 546mOhm Max Nonstandard, NR, S Type	View
NR3010T220M	Taiyo Yuden, 22µH Shielded Wirewound Inductor 350mA 1.236Ohm Max Nonstandard, NR	View
NRS6028T0R9NMGJ	Taiyo Yuden, 900nH Shielded Wirewound Inductor 4.6A 16.9mOhm Max Nonstandard, NR, S Type	View
NRS5024T1R5NMGJ	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 3.6A 22mOhm Max Nonstandard, NR, S Type	View
NRS5012T2R2MMGF	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2A 102mOhm Max 2005 (5012 Metric), NR, S Type	View
NRH3010T1R5NN	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 1.37A 90mOhm Max Nonstandard, NR, H Type	View

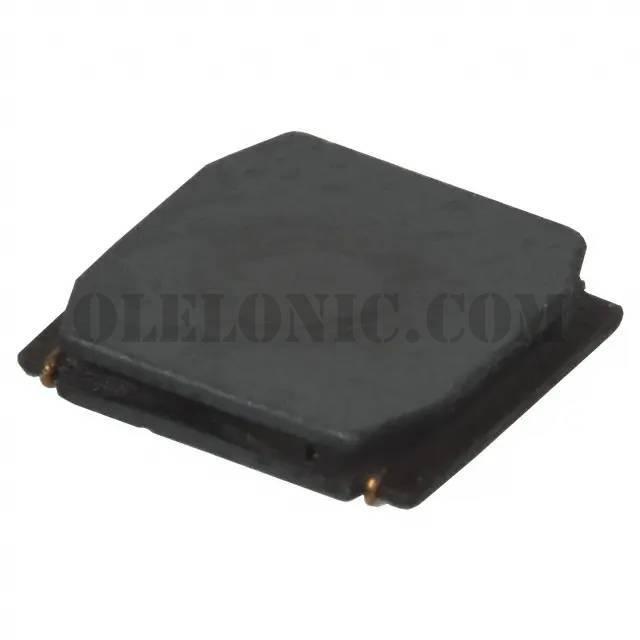

NR6045T470M

Part NumberNR6045T470M
