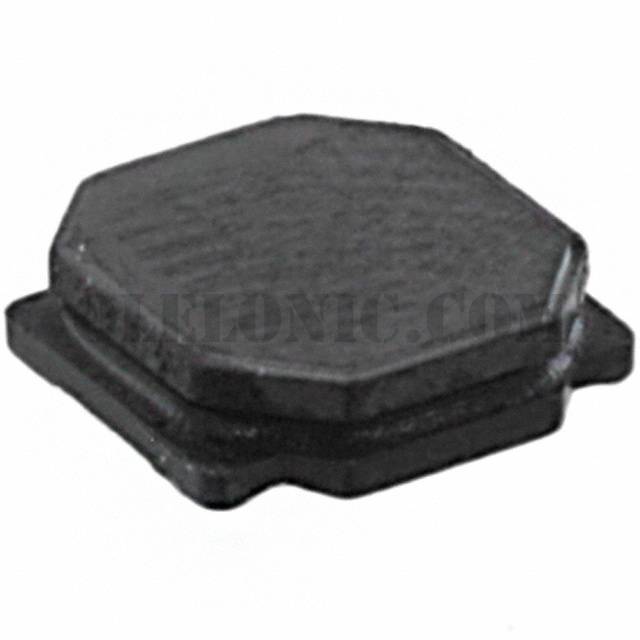

NR6020T3R3N


NR6020T3R3N

Part NumberNR6020T3R3N

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NR6020T3R3N - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerTaiyo Yuden
SeriesNR
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance3.3µH
Tolerance±30%
Current Rating (Amps)2.6A
Current - Saturation2.8A
ShieldingShielded
DC Resistance (DCR)48mOhm Max
Q @ Freq-
Frequency - Self Resonant55MHz
Ratings-
Operating Temperature-25°C ~ 120°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)0.079" (2.00mm)
