Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	1000
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	33µH
Tolerance	±20%
Current Rating (Amps)	530mA
Current - Saturation	590mA
Shielding	Shielded
DC Resistance (DCR)	840mOhm Max
Q @ Freq	-
Frequency - Self Resonant	8MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.236" L x 0.236" W (6.00mm x 6.00mm)
Height - Seated (Max)	0.047" (1.20mm)

NRS8030T1R0NJGJ	Taiyo Yuden, 1µH Shielded Wirewound Inductor 6.2A 11.7mOhm Max Nonstandard, NR, S Type	View
NRS5020T220MMGJV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 1A 312mOhm Max Nonstandard, NR, S Type	View
NRS4018T221MDGJ	Taiyo Yuden, 220µH Shielded Wirewound Inductor 170mA 4.56Ohm Max Nonstandard, NR, S Type	View
NR5040T100M	Taiyo Yuden, 10µH Shielded Wirewound Inductor 2.1A 72.8mOhm Max Nonstandard, NR	View
NRS4018T2R2MDGJ	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2.2A 50.4mOhm Max Nonstandard, NR, S Type	View
NRS8040T330MJGKV	Taiyo Yuden, 33µH Shielded Wirewound Inductor 1.7A 130mOhm Max Nonstandard, NR, S Type	View
NRS8030T470MJGJ	Taiyo Yuden, 47µH Shielded Wirewound Inductor 1.3A 221mOhm Max Nonstandard, NR, S Type	View
NRH2412T6R8MNGH	Taiyo Yuden, 6.8µH Shielded Wirewound Inductor 550mA 420mOhm Nonstandard, NR, H Type	View
NRS6020T6R8NMGJ	Taiyo Yuden, 6.8µH Shielded Wirewound Inductor 1.8A 102mOhm Max Nonstandard, NR, S Type	View
NRS5030T220MMGJV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 1.05A 234mOhm Max Nonstandard, NR, S Type	View
NRS6028T1R5NMGJV	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 4.2A 20.8mOhm Max Nonstandard, NR, S Type	View
NRH2410T1R0NN4	Taiyo Yuden, 1µH Shielded Wirewound Inductor 1.41A 84mOhm Max Nonstandard, NR, H Type	View

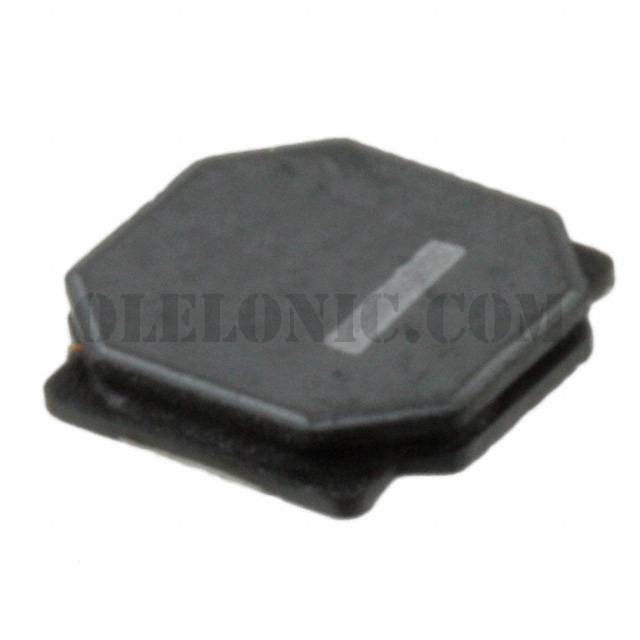

NR6012T330ME
