Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	1500
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	47µH
Tolerance	±20%
Current Rating (Amps)	900mA
Current - Saturation	1.1A
Shielding	Shielded
DC Resistance (DCR)	403mOhm Max
Q @ Freq	-
Frequency - Self Resonant	6MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max)	0.157" (4.00mm)

NRH3012T1R0NNV	Taiyo Yuden, 1µH Shielded Wirewound Inductor 1.71A 57.6mOhm Max Nonstandard, NR, H Type	View
NRS6045T220MMGKV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 1.6A 139.1mOhm Max Nonstandard, NR, S Type	View
NRS5030T220MMGJ	Taiyo Yuden, 22µH Shielded Wirewound Inductor 1.05A 180mOhm Nonstandard, NR, S Type	View
NRH2410T220MNV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 300mA 1.764Ohm Max Nonstandard, NR, H Type	View
NRS5030T4R7MMGJV	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 2.6A 45.5mOhm Max Nonstandard, NR, S Type	View
NRS5012T2R2MMGFV	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2A 102mOhm Max Nonstandard, NR, S Type	View
NRS2012T3R3MGJ	Taiyo Yuden, 3.3µH Shielded Wirewound Inductor 1.02A 190mOhm Nonstandard, NR, S Type	View
NRS5010T100MMGF	Taiyo Yuden, 10µH Unshielded Wirewound Inductor 950mA 300mOhm Max Nonstandard, NR, S Type	View
NRS5024T330MMGJ	Taiyo Yuden, 33µH Shielded Wirewound Inductor 630mA 370mOhm Max Nonstandard, NR, S Type	View
NRS3015T2R2MNGH	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 1.5A 58mOhm Max Nonstandard, NR, S Type	View
NRS6045T101MMGK	Taiyo Yuden, 100µH Shielded Wirewound Inductor 750mA 605.8mOhm Max Nonstandard, NR, S Type	View
NRS5030T220MMGJV	Taiyo Yuden, 22µH Shielded Wirewound Inductor 1.05A 234mOhm Max Nonstandard, NR, S Type	View

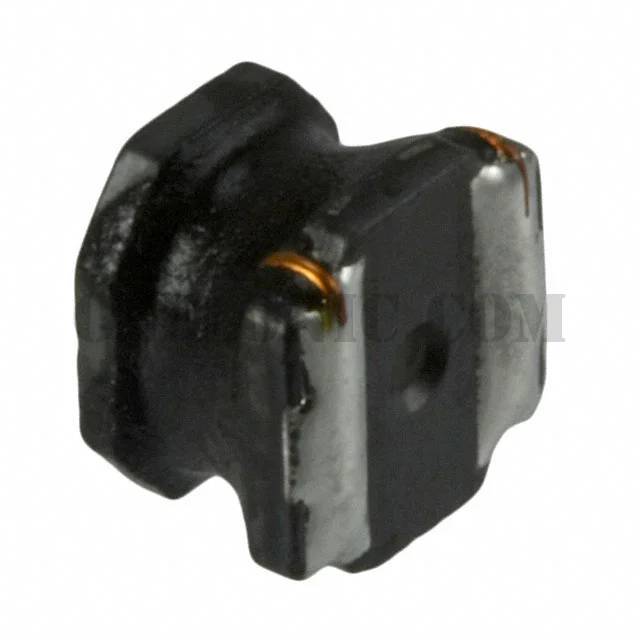

NR5040T470M

Part NumberNR5040T470M
