Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NR(H,S,V) Series Catalog
Standard Package	3500
Manufacturer	Taiyo Yuden
Series	NR
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	33µH
Tolerance	±20%
Current Rating (Amps)	490mA
Current - Saturation	650mA
Shielding	Shielded
DC Resistance (DCR)	636mOhm Max
Q @ Freq	-
Frequency - Self Resonant	12MHz
Ratings	-
Operating Temperature	-25°C ~ 120°C
Inductance Frequency - Test	100kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.071" (1.80mm)

NR3012T470M	Taiyo Yuden, 47µH Shielded Wirewound Inductor 280mA 1.74Ohm Max Nonstandard, NR	View
NRH3012T1R5NN	Taiyo Yuden, 1.5µH Shielded Wirewound Inductor 1.6A 66mOhm Max Nonstandard, NR, H Type	View
NRS4018T2R2MDGJV	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2.2A 50.4mOhm Max Nonstandard, NR, S Type	View
NR3012T100M	Taiyo Yuden, 10µH Shielded Wirewound Inductor 630mA 348mOhm Max Nonstandard, NR	View
NRS5012T2R2MMGF	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2A 102mOhm Max 2005 (5012 Metric), NR, S Type	View
NRS6020T4R7NMGJ	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 2.15A 69.6mOhm Max Nonstandard, NR, S Type	View
NRV2012T1R5NGFV	Taiyo Yuden, 1.5µH Unshielded Wirewound Inductor 1.4A 120mOhm Max Nonstandard, NR, V Type	View
NRS5020T2R2NMGJV	Taiyo Yuden, 2.2µH Shielded Wirewound Inductor 2.9A 42mOhm Max Nonstandard, NR, S Type	View
NR3012T4R7M	Taiyo Yuden, 4.7µH Shielded Wirewound Inductor 980mA 156mOhm Max Nonstandard, NR	View
NRS6010T100MMGF	Taiyo Yuden, 10µH Shielded Wirewound Inductor 1.1A 324mOhm Max 2304 (6010 Metric), NR, S Type	View
NRS5030TR47NMGJV	Taiyo Yuden, 470nH Shielded Wirewound Inductor 5A 13mOhm Max Nonstandard, NR, S Type	View
NRV2012T1R5NGFV	Taiyo Yuden, 1.5µH Unshielded Wirewound Inductor 1.4A 120mOhm Max Nonstandard, NR, V Type	View

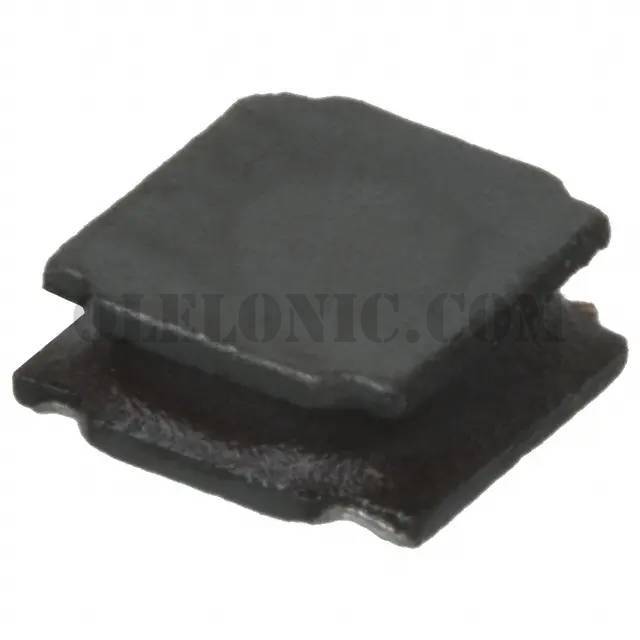

NR4018T330M
