NR3010T2R2M


NR3010T2R2M

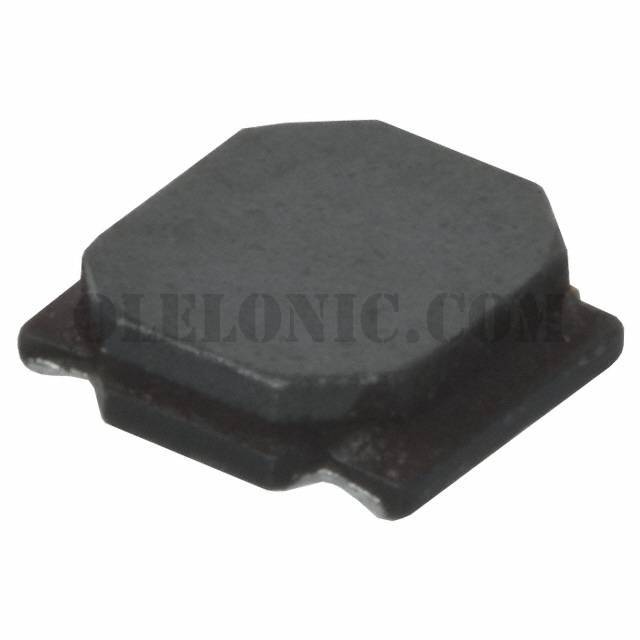

Part NumberNR3010T2R2M

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NR3010T2R2M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package2000
ManufacturerTaiyo Yuden
SeriesNR
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance2.2µH
Tolerance±20%
Current Rating (Amps)1.1A
Current - Saturation1.1A
ShieldingShielded
DC Resistance (DCR)114mOhm Max
Q @ Freq-
Frequency - Self Resonant82MHz
Ratings-
Operating Temperature-25°C ~ 120°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max)0.039" (1.00mm)
