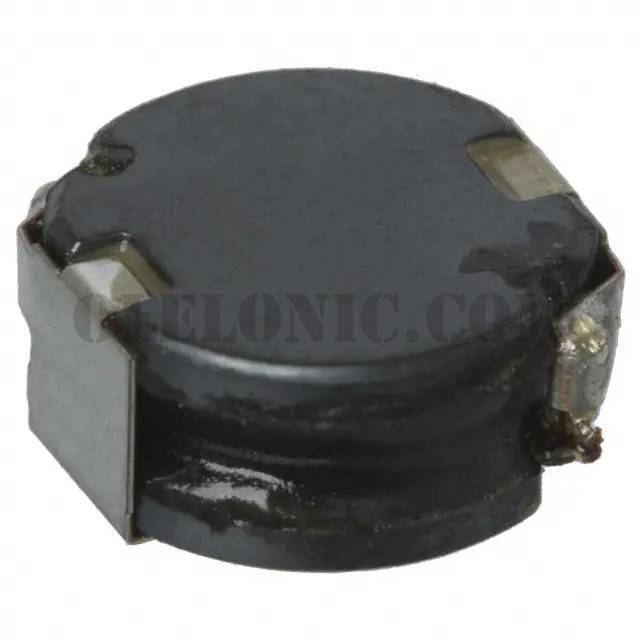

NR10050T150M


NR10050T150M

Part NumberNR10050T150M

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

NR10050T150M - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerTaiyo Yuden
SeriesNR
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance15µH
Tolerance±20%
Current Rating (Amps)3.2A
Current - Saturation3.6A
ShieldingUnshielded
DC Resistance (DCR)45.5mOhm Max
Q @ Freq-
Frequency - Self Resonant11MHz
Ratings-
Operating Temperature-25°C ~ 105°C
Inductance Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package-
Size / Dimension0.394" L x 0.386" W (10.00mm x 9.80mm)
Height - Seated (Max)0.197" (5.00mm)
