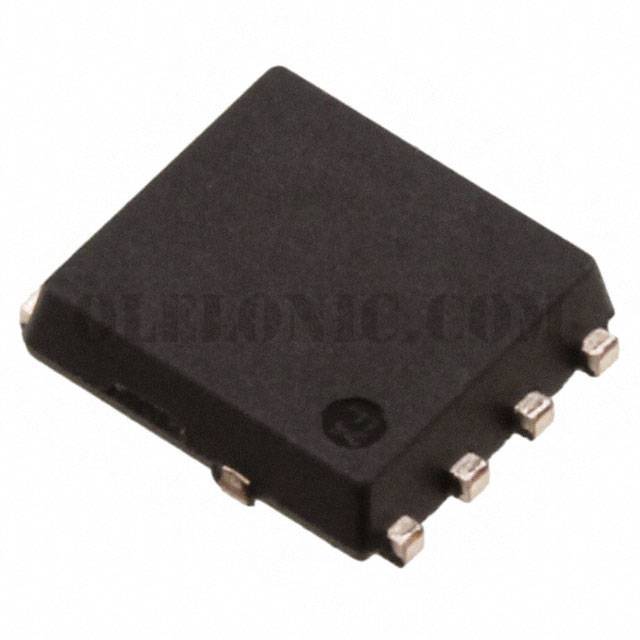

NP35N04YUG-E1-AY

Part NumberNP35N04YUG-E1-AY

ManufacturerRenesas Electronics America

DescriptionMOSFET N-CH 40V 35A 8HSON

DatasheetNP35N04YUG

Package / Case8-SMD, Flat Lead Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 35A (Tc) 1W (Ta), 77W (Tc) Surface Mount 8-HSON

To learn about the specification of NP35N04YUG-E1-AY, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NP35N04YUG-E1-AY with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NP35N04YUG-E1-AY.
We are offering NP35N04YUG-E1-AY for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NP35N04YUG-E1-AY - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

NP35N04YUG

Standard Package

2500

Manufacturer

Renesas Electronics America

Series

Packaging

Tape & Reel (TR)

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

40V

Current - Continuous Drain (Id) @ 25°C

35A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

10mOhm @ 17.5A, 10V

Vgs(th) (Max) @ Id

4V @ 250µA

Gate Charge (Qg) (Max) @ Vgs

54nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

2850pF @ 25V

FET Feature

Power Dissipation (Max)

1W (Ta), 77W (Tc)

Operating Temperature

175°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

8-HSON

Package / Case

8-SMD, Flat Lead Exposed Pad
