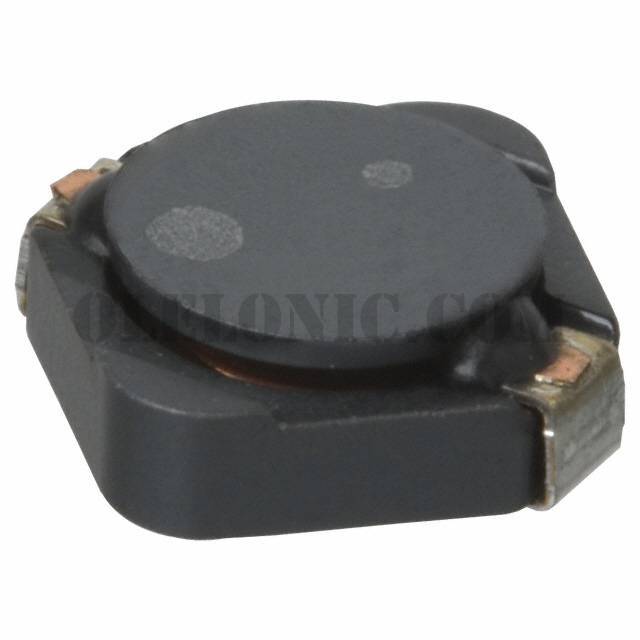

NP04SZB3R3N

Part NumberNP04SZB3R3N

ManufacturerTaiyo Yuden

DescriptionFIXED IND 3.3UH 2A 60 MOHM SMD

DatasheetN/NP Type SMD Inductors

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description3.3µH Shielded Inductor 2A 60mOhm Max Nonstandard

To learn about the specification of NP04SZB3R3N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NP04SZB3R3N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NP04SZB3R3N.
We are offering NP04SZB3R3N for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NP04SZB3R3N - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

N/NP Type SMD Inductors

Standard Package

3000

Manufacturer

Taiyo Yuden

Series

N, P Type

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Material - Core

Ferrite

Inductance

3.3µH

Tolerance

±30%

Current Rating (Amps)

Current - Saturation

2.2A

Shielding

Shielded

DC Resistance (DCR)

60mOhm Max

Q @ Freq

Frequency - Self Resonant

30MHz

Ratings

Operating Temperature

-25°C ~ 105°C

Inductance Frequency - Test

1kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.197" L x 0.197" W (5.00mm x 5.00mm)

Height - Seated (Max)

0.079" (2.00mm)
