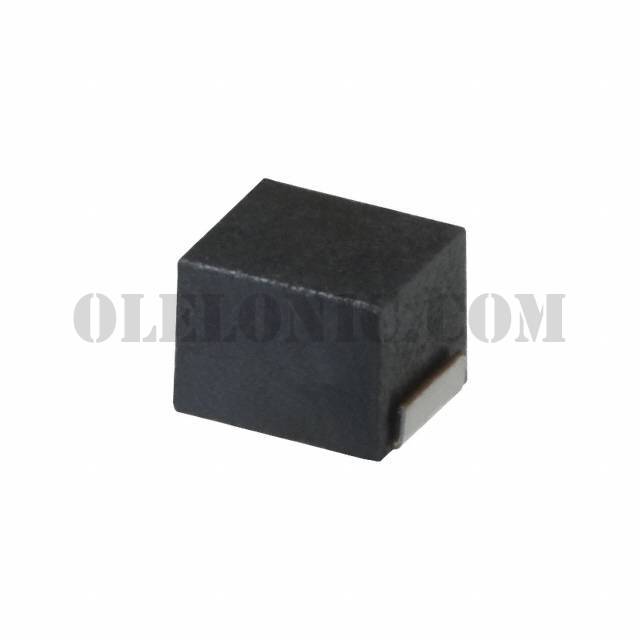

NLHV25T-R18J-PF

Part NumberNLHV25T-R18J-PF

ManufacturerTDK Corporation

DescriptionFIXED IND 180NH 475MA 450 MOHM

DatasheetNLHV25 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description180nH Unshielded Wirewound Inductor 475mA 450mOhm Max Nonstandard

To learn about the specification of NLHV25T-R18J-PF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NLHV25T-R18J-PF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NLHV25T-R18J-PF.
We are offering NLHV25T-R18J-PF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NLHV25T-R18J-PF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

NLHV25 Series

Standard Package

Manufacturer

TDK Corporation

Series

NLHV

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Wirewound

Material - Core

Inductance

180nH

Tolerance

±5%

Current Rating (Amps)

475mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

450mOhm Max

Q @ Freq

35 @ 25.2MHz

Frequency - Self Resonant

500MHz

Ratings

Operating Temperature

-40°C ~ 105°C

Inductance Frequency - Test

25.2MHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.098" L x 0.079" W (2.50mm x 2.00mm)

Height - Seated (Max)

0.071" (1.80mm)
