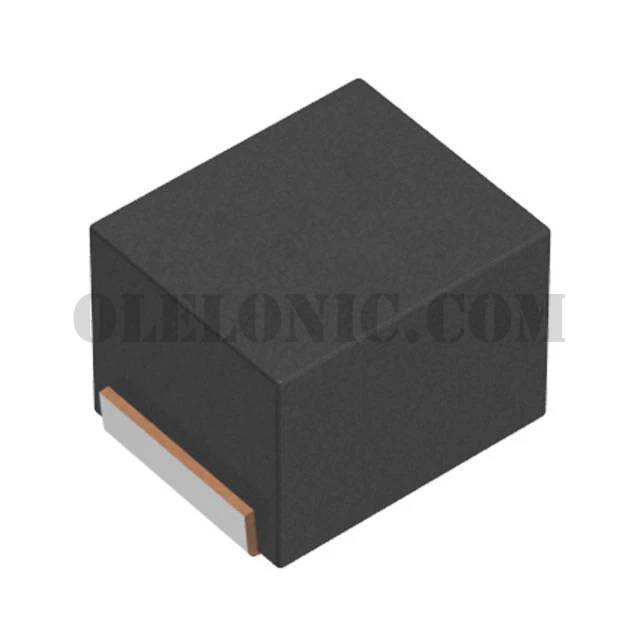

NLCV32T-R68M-PFRD

Part NumberNLCV32T-R68M-PFRD

ManufacturerTDK Corporation

DescriptionFIXED IND 680NH 1.9A 54 MOHM SMD

DatasheetNLCV32-PFRD Series, Automotive

Package / Case1210 (3225 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description680nH Unshielded Wirewound Inductor 1.9A 54mOhm Max 1210 (3225 Metric)

To learn about the specification of NLCV32T-R68M-PFRD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NLCV32T-R68M-PFRD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NLCV32T-R68M-PFRD.
We are offering NLCV32T-R68M-PFRD for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NLCV32T-R68M-PFRD - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

NLCV32-PFRD Series, Automotive

Standard Package

2000

Manufacturer

TDK Corporation

Series

NLCV-PFD

Packaging

Tape & Reel (TR)

Part Status

Not For New Designs

Type

Wirewound

Material - Core

Ferrite

Inductance

680nH

Tolerance

±20%

Current Rating (Amps)

1.9A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

54mOhm Max

Q @ Freq

10 @ 25.2MHz

Frequency - Self Resonant

180MHz

Ratings

AEC-Q200

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

25.2MHz

Mounting Type

Surface Mount

Package / Case

1210 (3225 Metric)

Supplier Device Package

1210 (3225 Metric)

Size / Dimension

0.126" L x 0.098" W (3.20mm x 2.50mm)

Height - Seated (Max)

0.094" (2.40mm)
