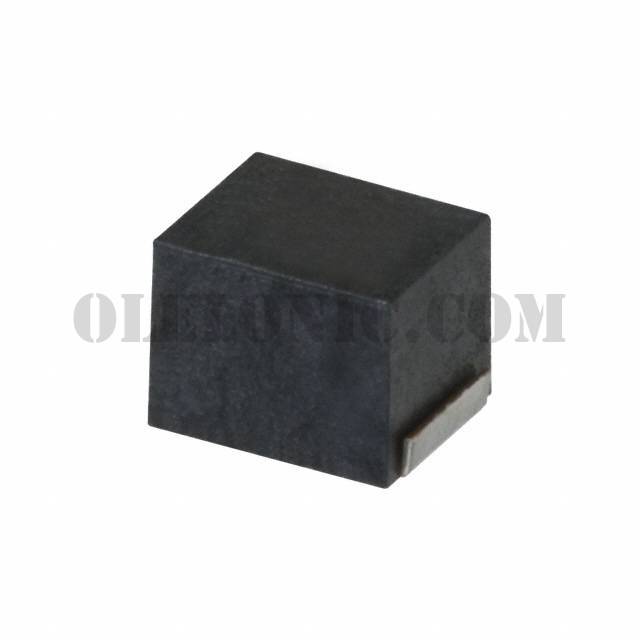

NLCV32T-3R3M-EFRD

Part NumberNLCV32T-3R3M-EFRD

To learn about the specification of NLCV32T-3R3M-EFRD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NLCV32T-3R3M-EFRD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NLCV32T-3R3M-EFRD.
We are offering NLCV32T-3R3M-EFRD for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	NLCV32-EFRD Series, Automotive
Standard Package	1
Manufacturer	TDK Corporation
Series	NLCV-EFD
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	3.3µH
Tolerance	±20%
Current Rating (Amps)	1A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	192mOhm Max
Q @ Freq	15 @ 7.96MHz
Frequency - Self Resonant	54MHz
Ratings	AEC-Q200
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	7.96MHz
Mounting Type	Surface Mount
Package / Case	1210 (3225 Metric)
Supplier Device Package	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.094" (2.40mm)
