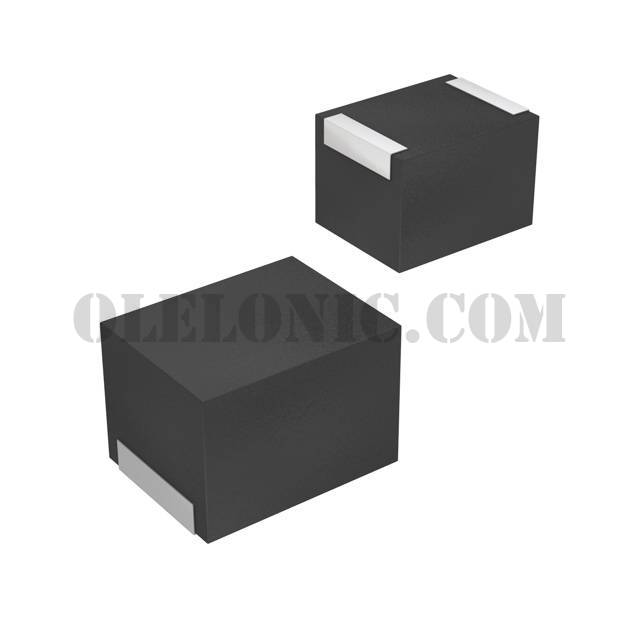

NLC322522T-151K

Part NumberNLC322522T-151K

ManufacturerTDK Corporation

DescriptionFIXED IND 150UH 85MA 6.1 OHM SMD

DatasheetNLC3225 Series

Package / Case1210 (3225 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description150µH Unshielded Inductor 85mA 6.1Ohm 1210 (3225 Metric)

To learn about the specification of NLC322522T-151K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NLC322522T-151K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NLC322522T-151K.
We are offering NLC322522T-151K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NLC322522T-151K - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

NLC3225 Series

Standard Package

2000

Manufacturer

TDK Corporation

Series

NLC

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Material - Core

Inductance

150µH

Tolerance

±10%

Current Rating (Amps)

85mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

6.1Ohm

Q @ Freq

20 @ 796kHz

Frequency - Self Resonant

8MHz

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

796kHz

Mounting Type

Surface Mount

Package / Case

1210 (3225 Metric)

Supplier Device Package

1210

Size / Dimension

0.126" L x 0.098" W (3.20mm x 2.50mm)

Height - Seated (Max)

0.094" (2.40mm)
