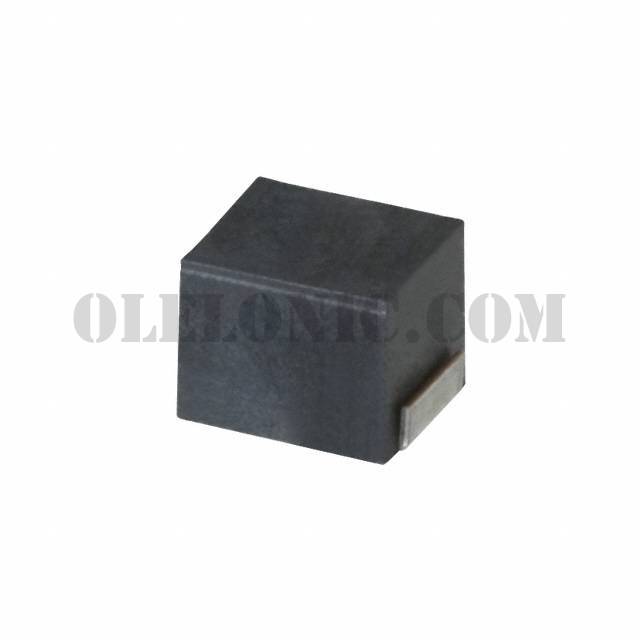

NLC252018T-2R2M

Part NumberNLC252018T-2R2M

ManufacturerTDK Corporation

DescriptionFIXED IND 2.2UH 390MA 500 MOHM

DatasheetNLC Series NLC 2520 Tpye

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Unshielded Inductor 390mA 500mOhm Nonstandard

To learn about the specification of NLC252018T-2R2M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NLC252018T-2R2M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NLC252018T-2R2M.
We are offering NLC252018T-2R2M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NLC252018T-2R2M - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

NLC Series NLC 2520 Tpye

Standard Package

2000

Manufacturer

TDK Corporation

Series

NLC

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Material - Core

Inductance

2.2µH

Tolerance

±20%

Current Rating (Amps)

390mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

500mOhm

Q @ Freq

20 @ 7.96MHz

Frequency - Self Resonant

95MHz

Ratings

Operating Temperature

-20°C ~ 85°C

Inductance Frequency - Test

7.96MHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.098" L x 0.079" W (2.50mm x 2.00mm)

Height - Seated (Max)

0.071" (1.80mm)
