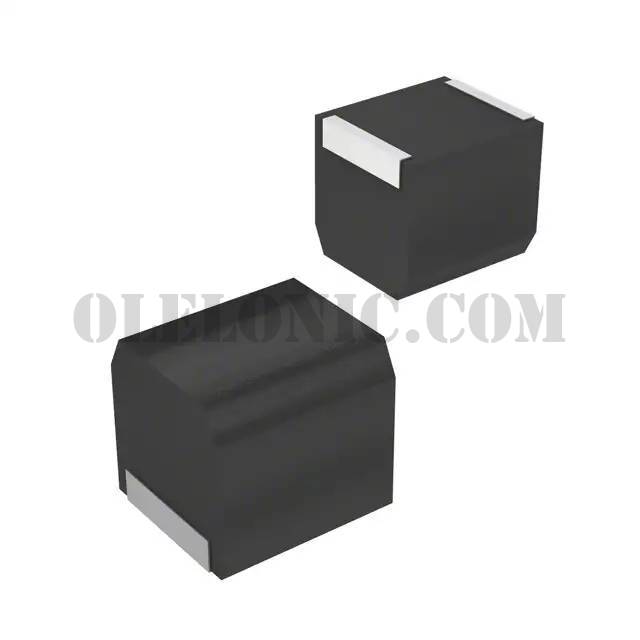

NL565050T-562J-PF

Part NumberNL565050T-562J-PF

ManufacturerTDK Corporation

DescriptionFIXED IND 5.6MH 33MA 85 OHM SMD

DatasheetNL565050 Series, Commercial

Package / Case2220 (5650 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5.6mH Unshielded Wirewound Inductor 33mA 85Ohm Max 2220 (5650 Metric)

To learn about the specification of NL565050T-562J-PF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NL565050T-562J-PF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NL565050T-562J-PF.
We are offering NL565050T-562J-PF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NL565050T-562J-PF - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

NL565050 Series, Commercial

Standard Package

Manufacturer

TDK Corporation

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Wirewound

Material - Core

Inductance

5.6mH

Tolerance

±5%

Current Rating (Amps)

33mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

85Ohm Max

Q @ Freq

30 @ 252kHz

Frequency - Self Resonant

800kHz

Ratings

Operating Temperature

-40°C ~ 105°C

Inductance Frequency - Test

252kHz

Mounting Type

Surface Mount

Package / Case

2220 (5650 Metric)

Supplier Device Package

Size / Dimension

0.220" L x 0.197" W (5.60mm x 5.00mm)

Height - Seated (Max)

0.197" (5.00mm)
