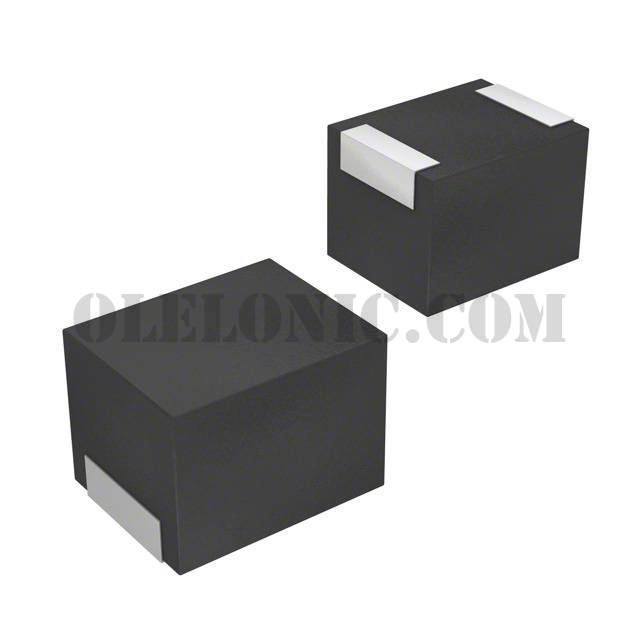

NL322522T-1R0J

Part NumberNL322522T-1R0J

ManufacturerTDK Corporation

DescriptionFIXED IND 1UH 400MA 700 MOHM SMD

DatasheetNL3225 Series

Package / Case1210 (3225 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Unshielded Inductor 400mA 700mOhm Max 1210 (3225 Metric)

To learn about the specification of NL322522T-1R0J, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NL322522T-1R0J with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NL322522T-1R0J.
We are offering NL322522T-1R0J for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NL322522T-1R0J - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

NL3225 Series

Standard Package

2000

Manufacturer

TDK Corporation

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Material - Core

Inductance

1µH

Tolerance

±5%

Current Rating (Amps)

400mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

700mOhm Max

Q @ Freq

30 @ 7.96MHz

Frequency - Self Resonant

120MHz

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

7.96MHz

Mounting Type

Surface Mount

Package / Case

1210 (3225 Metric)

Supplier Device Package

1210

Size / Dimension

0.126" L x 0.098" W (3.20mm x 2.50mm)

Height - Seated (Max)

0.094" (2.40mm)
