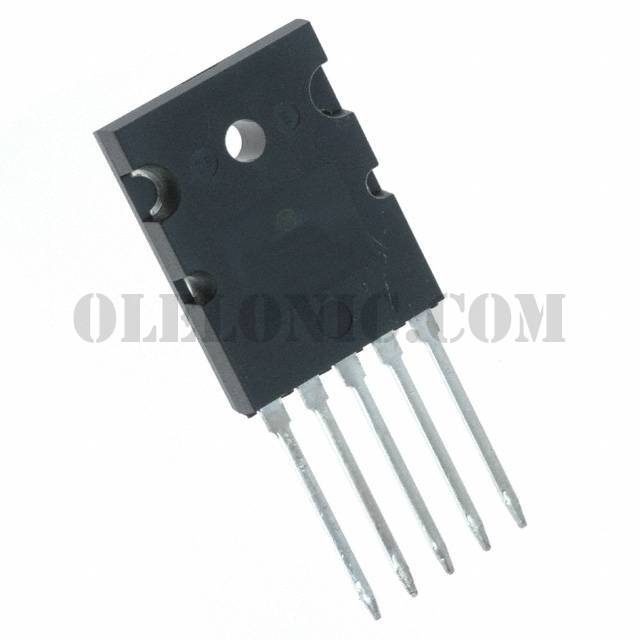

NJL0281DG

NJL0281DG

Part NumberNJL0281DG

ManufacturerON Semiconductor

DescriptionTRANS NPN 260V 15A TO-264

DatasheetNJL0281,0302D

Package / CaseTO-264-5

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 260V 15A 30MHz 180W Through Hole TO-264

To learn about the specification of NJL0281DG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NJL0281DG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NJL0281DG.
We are offering NJL0281DG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NJL0281DG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	NJL0281,0302D
Standard Package	25
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	15A
Voltage - Collector Emitter Breakdown (Max)	260V
Vce Saturation (Max) @ Ib, Ic	1V @ 500mA, 5A
Current - Collector Cutoff (Max)	10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	75 @ 3A, 5V
Power - Max	180W
Frequency - Transition	30MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-264-5
Supplier Device Package	TO-264
