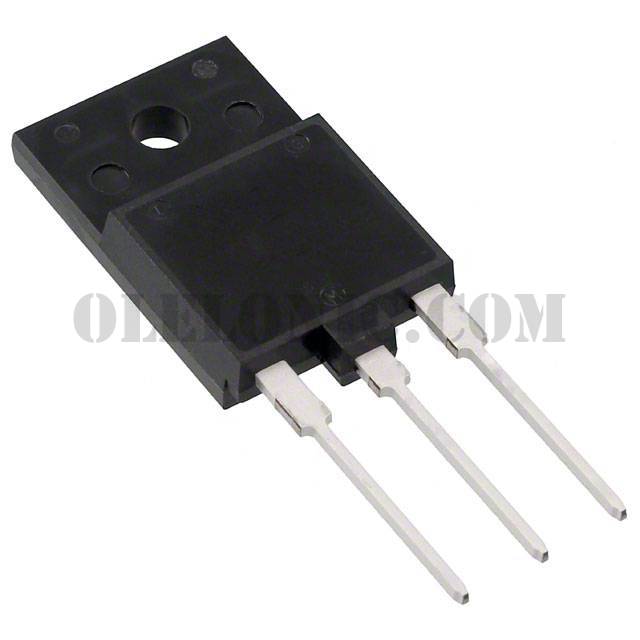

NGTG12N60TF1G

Part NumberNGTG12N60TF1G

ManufacturerON Semiconductor

DescriptionIGBT 600V 24A 54W TO-3PF

DatasheetNGTG12N60TF1G

Package / CaseTO-3P-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT 600V 24A 54W Through Hole

To learn about the specification of NGTG12N60TF1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NGTG12N60TF1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NGTG12N60TF1G.
We are offering NGTG12N60TF1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NGTG12N60TF1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Single

Datasheet

NGTG12N60TF1G

Standard Package

Manufacturer

ON Semiconductor

Series

Packaging

Tube

Part Status

Active

IGBT Type

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

24A

Current - Collector Pulsed (Icm)

88A

Vce(on) (Max) @ Vge, Ic

1.6V @ 15V, 12A

Power - Max

54W

Switching Energy

Input Type

Standard

Gate Charge

84nC

Td (on/off) @ 25°C

55ns/200ns

Test Condition

300V, 15A, 30Ohm, 15V

Operating Temperature

150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-3P-3 Full Pack
