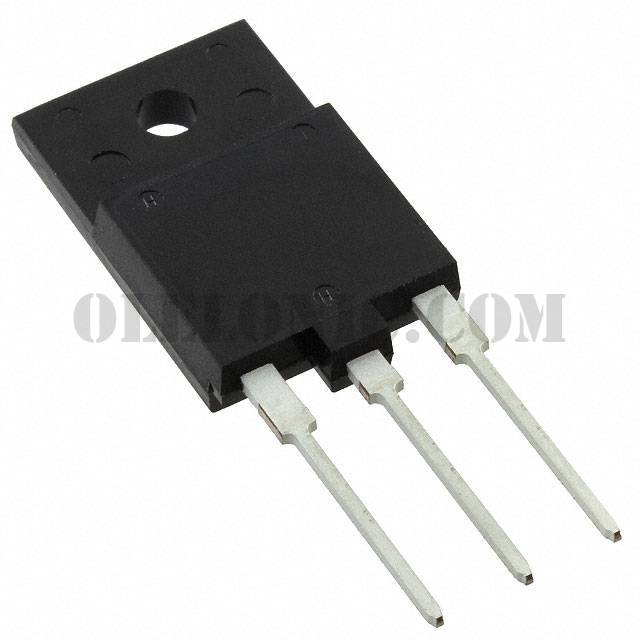

NDUL03N150CG

NDUL03N150CG

Part NumberNDUL03N150CG

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 1500V 2.5A TO3PF3

DatasheetNDUL03N150C

Package / CaseTO-3PL

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1500V 2.5A (Ta) 3W (Ta), 50W (Tc) Through Hole TO-3P(L)

To learn about the specification of NDUL03N150CG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NDUL03N150CG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NDUL03N150CG.
We are offering NDUL03N150CG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NDUL03N150CG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NDUL03N150C
Standard Package	30
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1500V
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	10.5Ohm @ 1.25A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	34nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	650pF @ 30V
FET Feature	-
Power Dissipation (Max)	3W (Ta), 50W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3P(L)
Package / Case	TO-3PL
