NDDL01N60Z-1G

Part NumberNDDL01N60Z-1G

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 600V 0.8A IPAK

DatasheetNDDL01N60Z, NDTL01N60Z

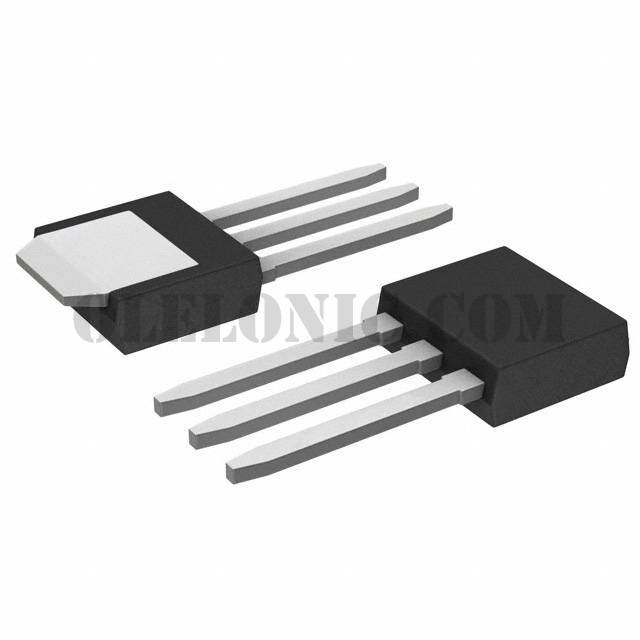

Package / CaseTO-251-3 Short Leads, IPak, TO-251AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 800mA (Ta) 26W (Tc) Through Hole IPAK (TO-251)

To learn about the specification of NDDL01N60Z-1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NDDL01N60Z-1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NDDL01N60Z-1G.
We are offering NDDL01N60Z-1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NDDL01N60Z-1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

NDDL01N60Z, NDTL01N60Z

Standard Package

Manufacturer

ON Semiconductor

Series

Packaging

Tube

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

600V

Current - Continuous Drain (Id) @ 25°C

800mA (Ta)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

15Ohm @ 400mA, 10V

Vgs(th) (Max) @ Id

4.5V @ 50µA

Gate Charge (Qg) (Max) @ Vgs

4.9nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

92pF @ 25V

FET Feature

Power Dissipation (Max)

26W (Tc)

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Supplier Device Package

IPAK (TO-251)

Package / Case

TO-251-3 Short Leads, IPak, TO-251AA
