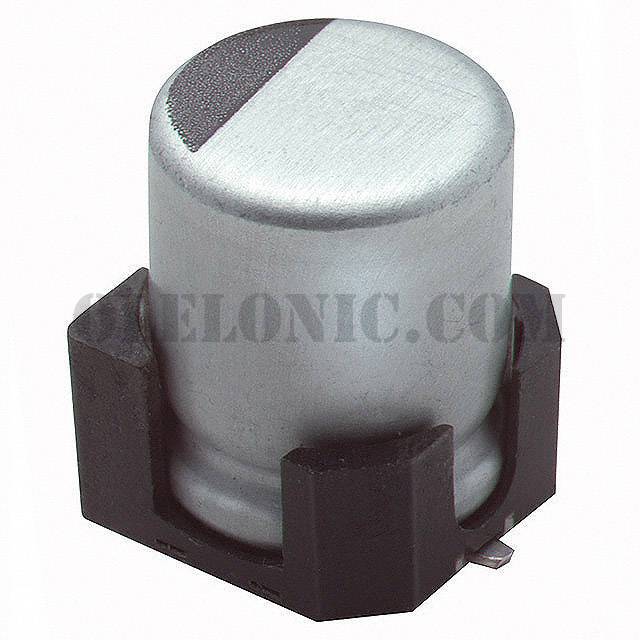

MZA16VC331MH10TP

Part NumberMZA16VC331MH10TP

ManufacturerUnited Chemi-Con

To learn about the specification of MZA16VC331MH10TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MZA16VC331MH10TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MZA16VC331MH10TP.
We are offering MZA16VC331MH10TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum Electrolytic Capacitors
Standard Package	500
Manufacturer	United Chemi-Con
Series	MZA
Packaging	Tape & Reel (TR)
Part Status	Obsolete
Capacitance	330µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	600mA @ 100kHz
Impedance	160 mOhms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
